Item specifics
Item
Type: Alarm Systems & Security Model Name: - Special Features: - Material
Type: - Item Weight: 465 kg Warranty: 1 Year Place of Origin: Guangdong China (Mainland) Product Color: Black Language: Simplified Chinese / Traditional Chinese / English

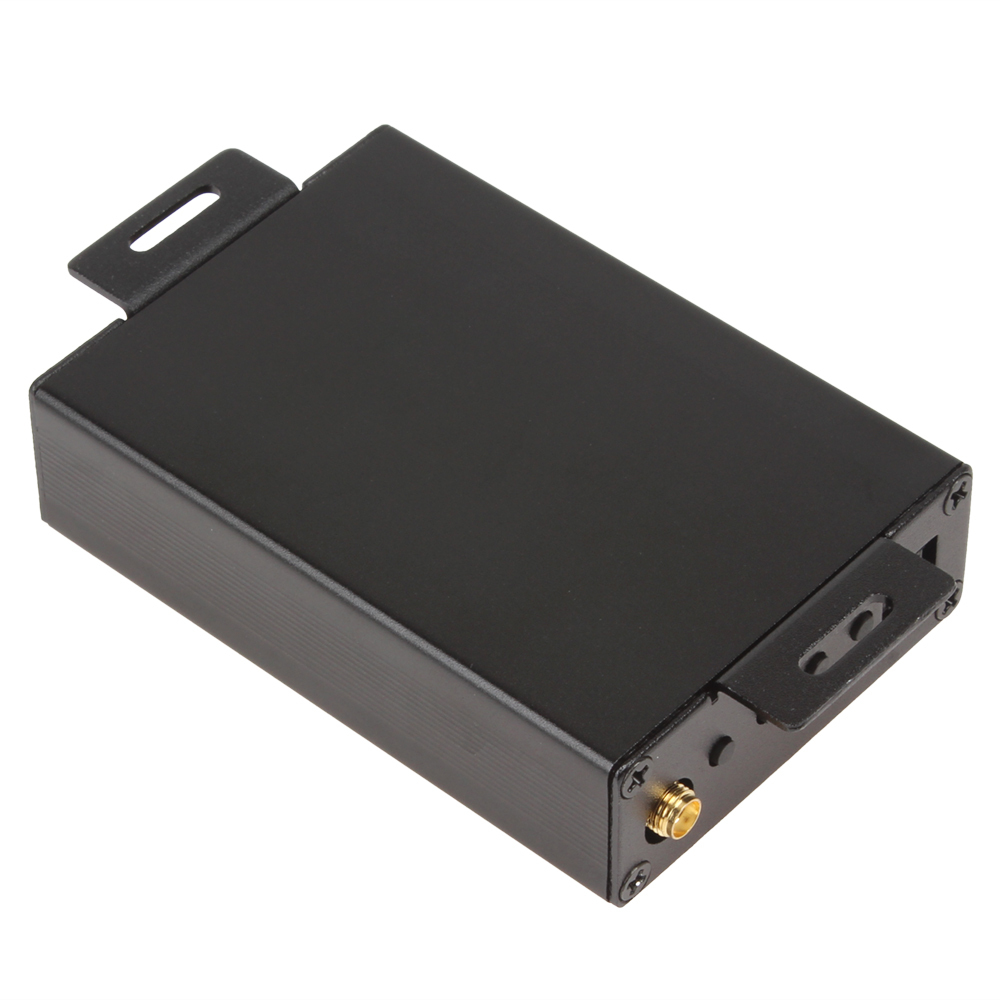

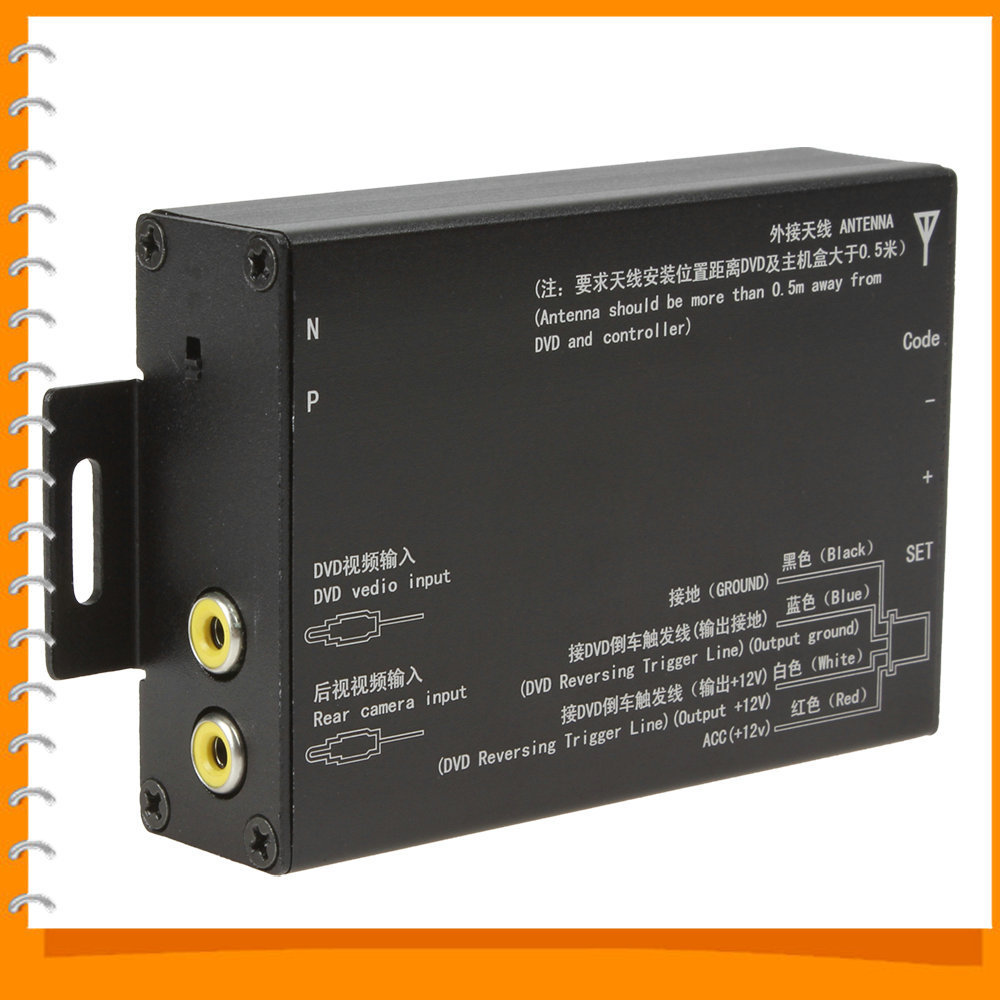

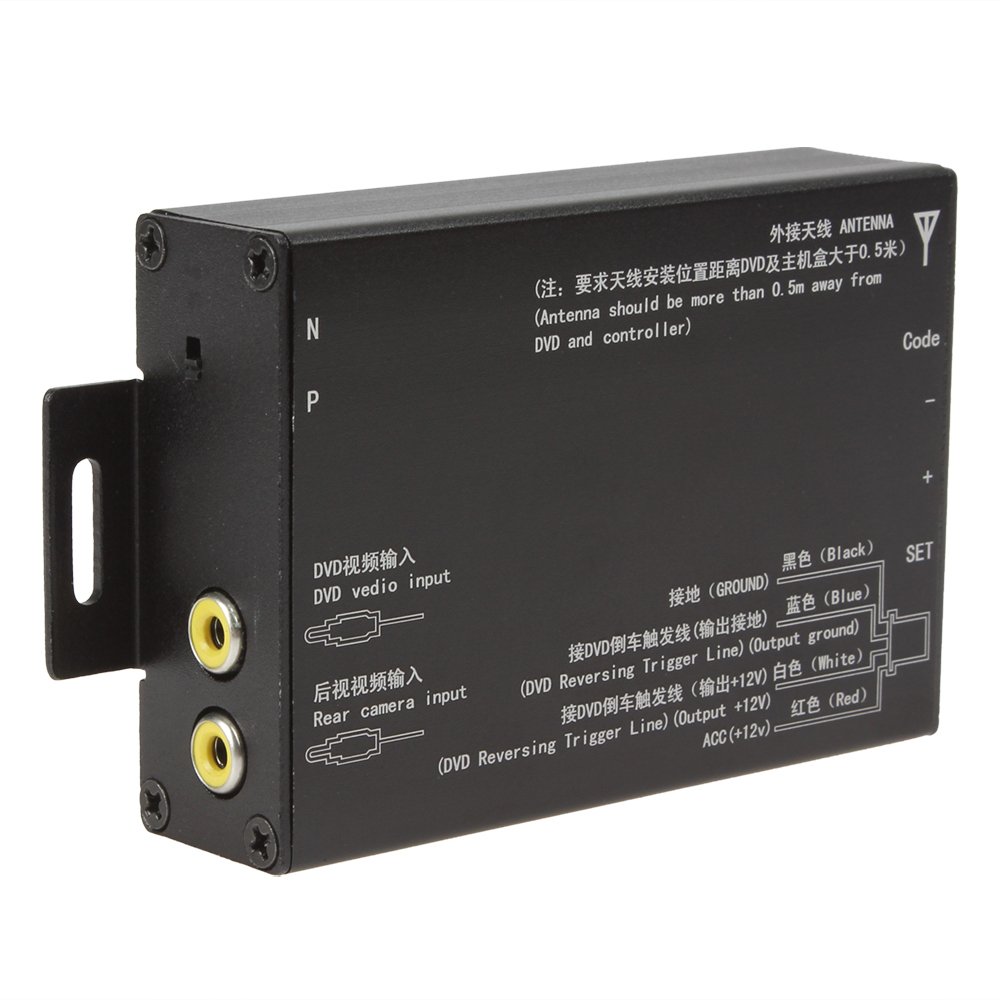

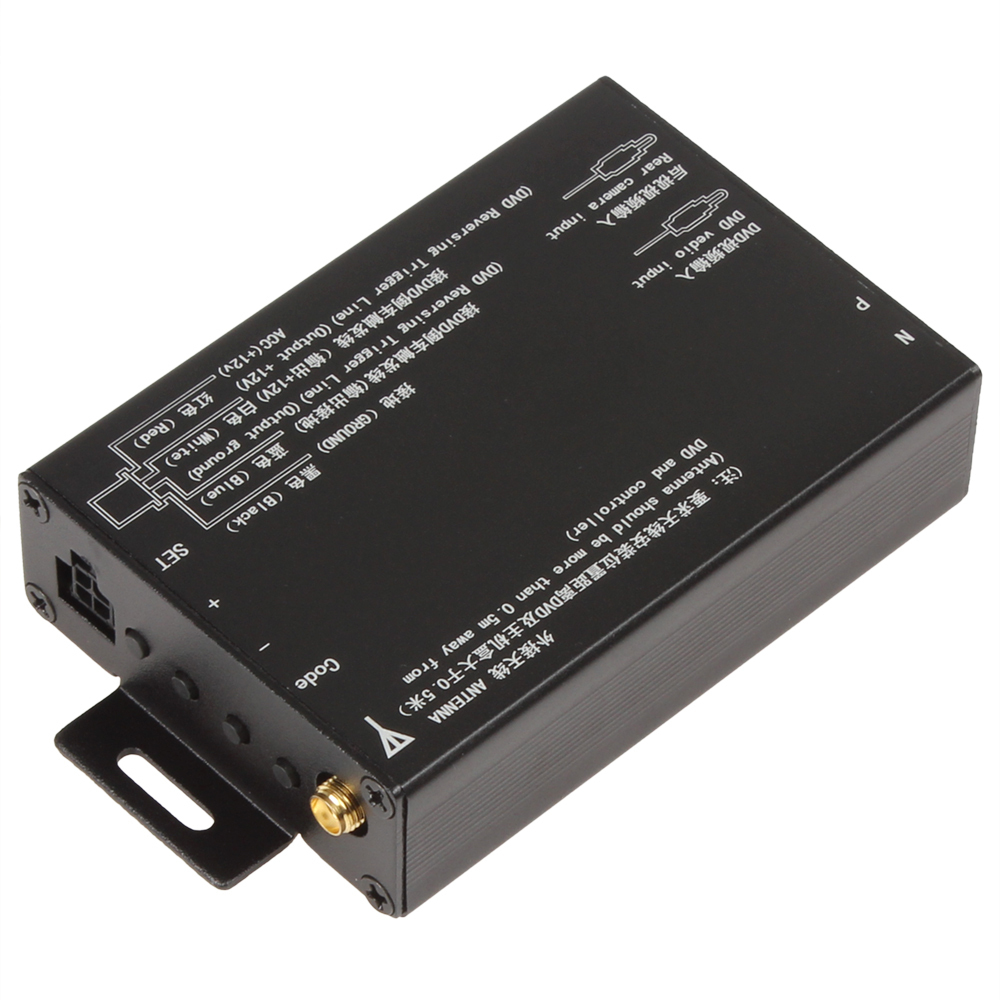

Wireless TPMS Transit Receiver System with 4 Sensors Displayed on Your DVD

This easy operation TPMS receiver is small in size and fast in transmit speed and high sensitivity of -114dBm 9.6HKZ Baud. It is used to send the temperature and pressure data to the video display in the vehicle. After the alert parameter is set up by the user, the system will alarm in case of abnormal pressure and temperature to make the driver be aware of safety driving more comfortable. Features:
- TPMS monitors tire temperature and pressure in real- time
- Reable and easy to install
- Directly displays tire data on the vehicle display
- Selectable pressure unit (PSI, BAR)
- Selectable temperature unit (C/ F)
- Configurable high / low pressure alert setting
- Configurable high temperature alert setting
- Selectable trailer ID and tractor ID
- Enlargeable signal transmission in case of long distance from sensors to the receiver
- Several ways for sensor coding
- With selectable video output system: PAL, NTSC
- TPMS handheld tool coding available

Specifications:>

Feature:
- TPMS monitors tire temperature and pressure in real- time
- Reable and easy to install
- Directly displays tire data on the vehicle display
- Selectable pressure unit (PSI, BAR)
- Selectable temperature unit (C/ F)
- Configurable high / low pressure alert setting
- Configurable high temperature alert setting
- Selectable trailer ID and tractor ID
- Enlargeable signal transmission in case of long distance from sensors to the receiver
- Several ways for sensor coding
- With selectable video output system: PAL, NTSC
- TPMS handheld tool coding available> Sensor Parameter:
- Operation Temperature: -40~+80 centigrade degree
- Storage Temperature: -40~+85 centigrade degree
- Pressure Range: 0-116 psi (internal sensor); 0-87 psi (external sensor)
- Pressure Accuracy: +-1.5 psi
- Temperature Accuracy: +-3 centigrade degree
- Transmission Power: <10dBm
- Transmission Frequency: 433.92MHz
- Battery Life: >=3 years (internal sensor); >=2 years (internal sensor)
- Size: 54 x 80 x 19mm (with valve)
- Weight: 34g (with valve)> Video Output Receiver Parameter:
- Working Temperature: -20~+80 centigrade degree
- Storage Temperature: -30~+85 centigrade degree
- Low Voltage Input: 12~24V
- Center Frequency: 433.92MHz - Weight: 138g
- Dimension: 115 x 65 x 25mm> Remote Controller Parameter:
- Standby Current: <3uA
- Operation Frequency: 433.92MHz
- Transmission Power: <=10dBm
- Operation Current: <=10mA> Language: Simpfied Chinese / Traditional Chinese / Engsh> Product Color: Black>
Package Weight: 465g> Package Dimension: 264 x 182 x 55mm> EPC_CEC_702>

Package Include:>

1 x Video Output Receiver> 1 x T Antenna> 1 x Remote Controller> 1 x Power Cable> 1 x Video Output Cable> 4 x Sensor>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.500kg (1.10lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
