Item specifics

Brand Name: Brand New
Model Number: Multifunctional Balance Charger Battery

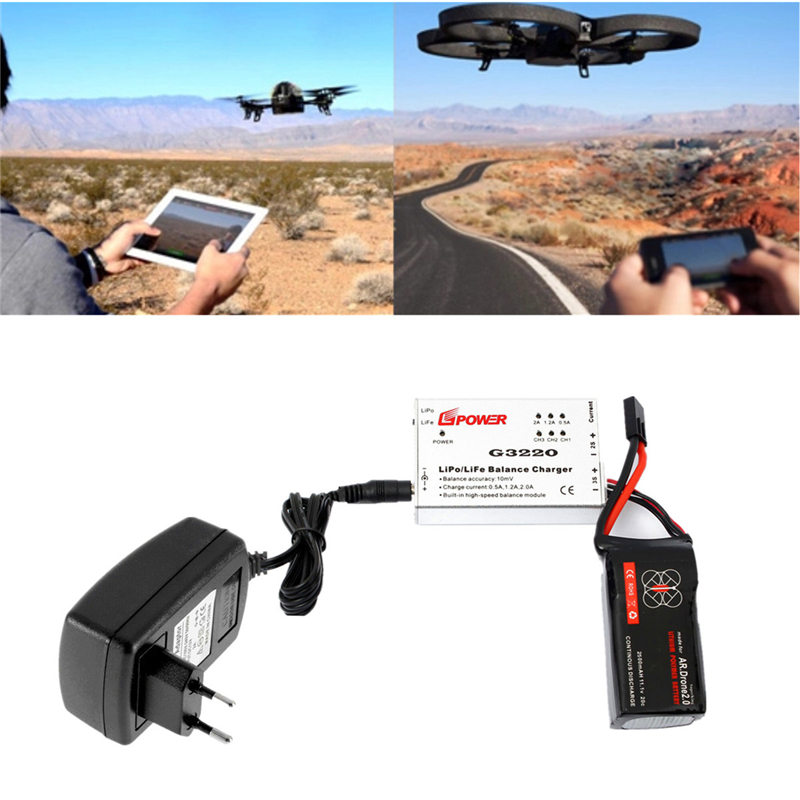

  Multifunctional Balance Charger + 2000/2500 mAh Battery For Parrot AR.Drone 2.0. Extended Fght Times, Have More Fun With Your Machine.

Features:
1.Built-in High-speed Balancing Module, Quick Balance Battery Voltage, Can Effectively Reduce The Charging Time, Using Advanced Mode Of Charge Balancing, Compared To Traditional Discharge Balance, Improves The Balance Of Speed And Also Avoids The Balancing Process Produces A Lot Of Heat Due To Discharge And Shorten The Charge Time.
2.Supported Types For LiPo / LiFe Battery.
3. 0.5A/1.2A/2.0A Three Kinds Adjustable Charging Current, Maximum Charging Current Of Up To 2.0A.
3.Charging Current Indicator, Single Cell Balance Indicator, Charge Calance At A Glance.
4.Input Under-voltage, Over-voltage Protection: When The Input Voltage Is Less Than 10V, Or Higher Than 18V Will Into Protection Status, Stop Charging And POWER Led Is Rapid Flashing To Alarm.
5.Input And Output Reverse Polarity Protection, Short-circuit Protection, Overcurrent / Overvoltage Protection.
6.Output Current Automatically Adjusting Function: When The Output Power Greater Than 20W, The Charger Will Automatically Adjust The Charging Current To Avoid The Charger Damaged.

Specification:
Balance Charger:
- Input Voltage Range: DC 11-16V/2.0A
- Rechargeable Battery Types: LiPo / LiFe (A123)
- Number Of Rechargeable Batteries: 2~3 cells
- Charging Current Range: 0.5A, 1.2A, 2.0A
- Max Charging Power: 20W
- Balance Precision: >10mV
- Full Voltage Accuracy:4.20V+-0.02V
- Charger Dimensions: 78*50*20mm
- Size:7.2 x 5 x 2.1cm

AC Adaptor:
- Model: DS24-C052000-A1
- Input: 100-240Vc.a. 50/60Hz 0.4a
- Output: 12V-...DC2.0A
- Size:Approx 4.3 x 5.5 x 8cm
- Cable Length:92cm

Battery:
Model 1:2000mAH 11.1V 20c
Model 2:2500mAH 11.1V 20c
Size(main):3.5 x 3 x 7cm

Package Include:
According To Your Choice
(One Kit Include: 1x LiPo / LiFe Balance Charger + 1x AC Adaptor + 1x Battery + 1x User Guide)

Tips:
1.Not allowed to charge the two sets of batteries.
2.Beyond the thium battery, please do not use other batteries to recharge. If it will cause abnormal heat or fire, Before charging, make sure that battery type.
3.When the charger is in use, do not leave unattended.
4. 3S and 2S charge one battery at a time, unable to charge two batteries simultaneously.


Note: The Parrot AR.Drone 2.0 , For ipad And Phone Is NOT Include.









Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.758kg (1.67lb.)
Package Size: 25cm x 20cm x 15cm (9.84in x 7.87in x 5.91in)
