Item specifics
Color: Silver Input Voltage: on Output Voltage: 12V Input Signal: AC Output Signal: DC12V
Brand Name: NO

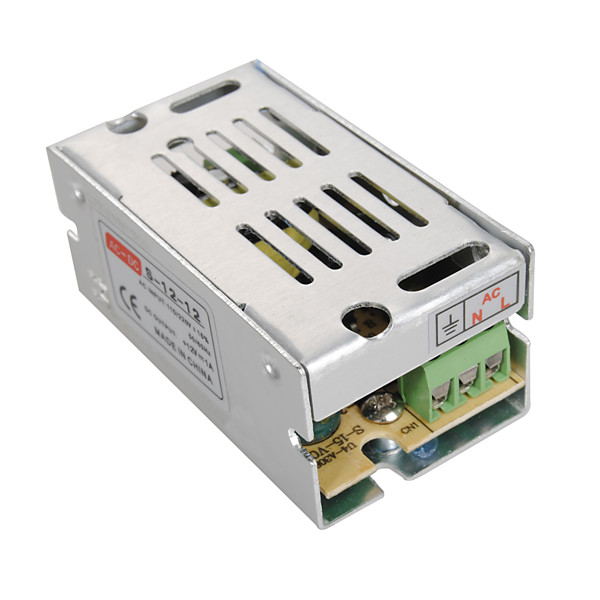

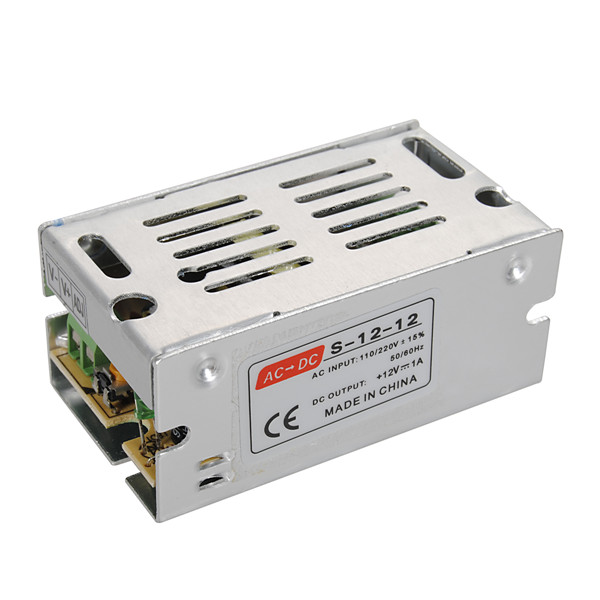

Model Number: 12W 1A Switch Power Supply Item
Type: Lighting Transformers





Universal AC input / full range
It's good quaty & high performance
100% full load burn-in test
Protections: overload/ over voltage/ short circuit
Coong by free air convection
(Not suggest for use in bathroom)
Appcations 5050 3528 5630 LED Strip Light .

Connection:

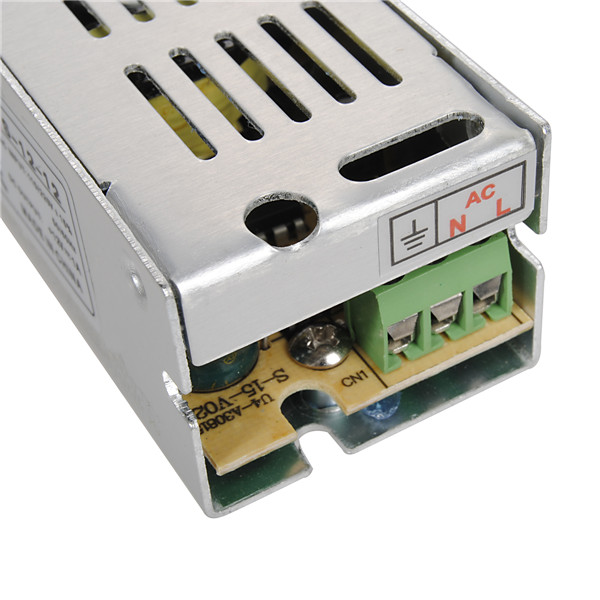

L, N: AC power input

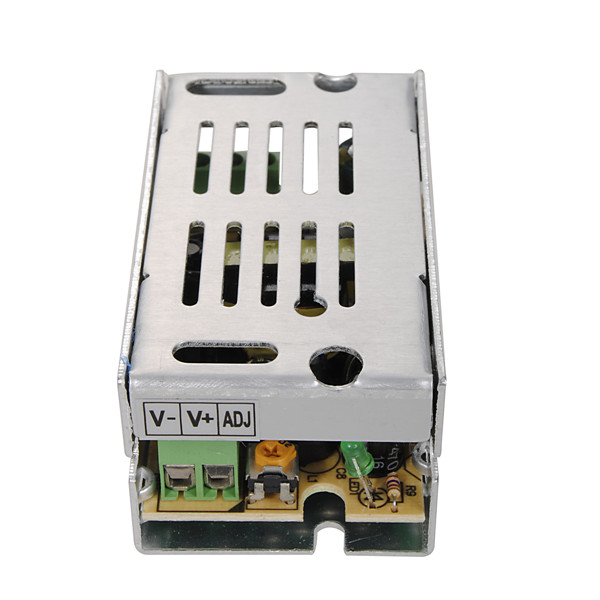

GND: DCpower output "-"
V: DCpower output "+"
+V / ADJ: Adjust the output voltage
Safety Compance: CCC/ FCC / CE
Working Temperature: 0~40??br/>Storage Temperature: -20~60??br/>Ambient Humidity: 0~95% Non-Condensation

Special Note:
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.
Professional Installation of quafied electrician is highly recommended.

Appcations:
adaptor designed specifically for our LED strip ght.Its high quaty and new power supply for 3825 5050 5630 3014 2835 7020 led strip Light,Wireless Router, ADSL Cats, HUB, Switches, Security Cameras. Audio/Video Power Supply etc,it is easy connection and simpcity to use.

How to calculate Support max LED Strip Length:
Assumption:
Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this sting)÷12W/m=2m,
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m

Input Voltage: AC110V/220V
Output Voltage: 12V 1A 12W

Package Include:
1 X Transformer Power Supply
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.082kg (0.18lb.)
Package Size: 10cm x 7cm x 4cm (3.94in x 2.76in x 1.57in)
