Item specifics
Display
Type: Digital Only Operating Temperature: -10 to 50C Accuracy Class: - Measuring Range: DC 40~100V DIY Supplies: Electrical Dimensions: 79 x 43 x 25 mm
Model Number: YB5135D Place of Origin: Guangdong, China (Mainland) Warranty: 1 Year Working pressure: 80 ~ 106kPa
is_customized: Yes

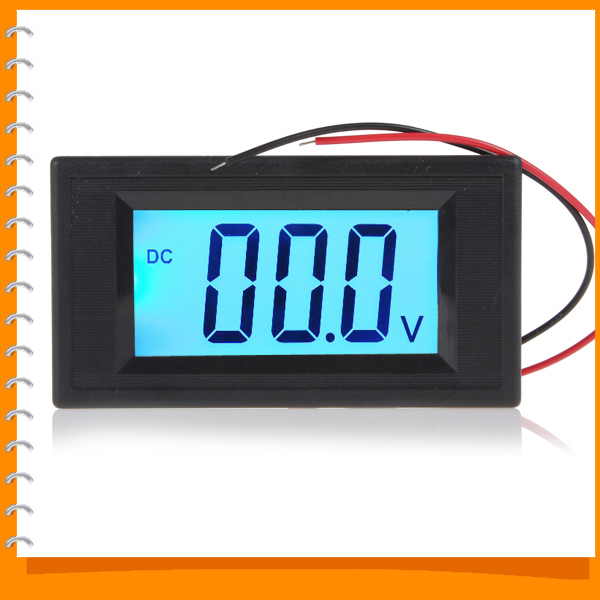

YB5135D DC 40-100V Two Wire System Blue Backght LCD Display Digital Voltmeter

YB5135D is a two wire system LCD digital display voltmeter with blue backght. It can measure equipment directly, without external power supply. This item range is DC 40-100V. Features:
- Product stabity, high measurement accuracy, strong anti-jamming capabity
- Appearance with standard size, easy to install
- Two wire system test directly, without external power supply

Specifications:>

Model: YB5135D> Features:
- Product stabity, high measurement accuracy, strong anti-jamming capabity
- Appearance with standard size, easy to install
- Two wire system test directly, without external power supply> Display: Blue backght LCD, character height 20mm> Measuring Range: DC 40~100V> Operating Current: <15mA> Resolution Ratio: 0.1V> Measurement Rate: 2 / S> Operating Temperature: -10C ~ 50C> Operating Humidity: 10 to 80% (non-condensing)> Working pressure: 80 ~ 106kPa> Sun exposure: No direct exposure to> Product Dimensions: 79 x 43 x 25 mm> Mounting Cutout: 76 x 39 mm> Net Weight: 32g> Approved: CE / FCC> After Sales Service: 1 Year Warranty> EPC_EGS_142>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.050kg (0.11lb.)
Package Size: 11cm x 11cm x 11cm (4.33in x 4.33in x 4.33in)
