Item specifics
Item
Type: Car Monitors Placement: In-Dash Display Size: 7" Item Size: 180mm x 118mm x 15mm Model Name: - Resolution: 800x480 Material
Type: ABS Item Weight: 244 g Place of Origin: Guangdong, China (Mainland) Warranty: 1 Year Display Component: : Color TFT LCD System:: PAL / NTSC system(auto switch) Power Supply: : DC 12V / 24V Color: : Black

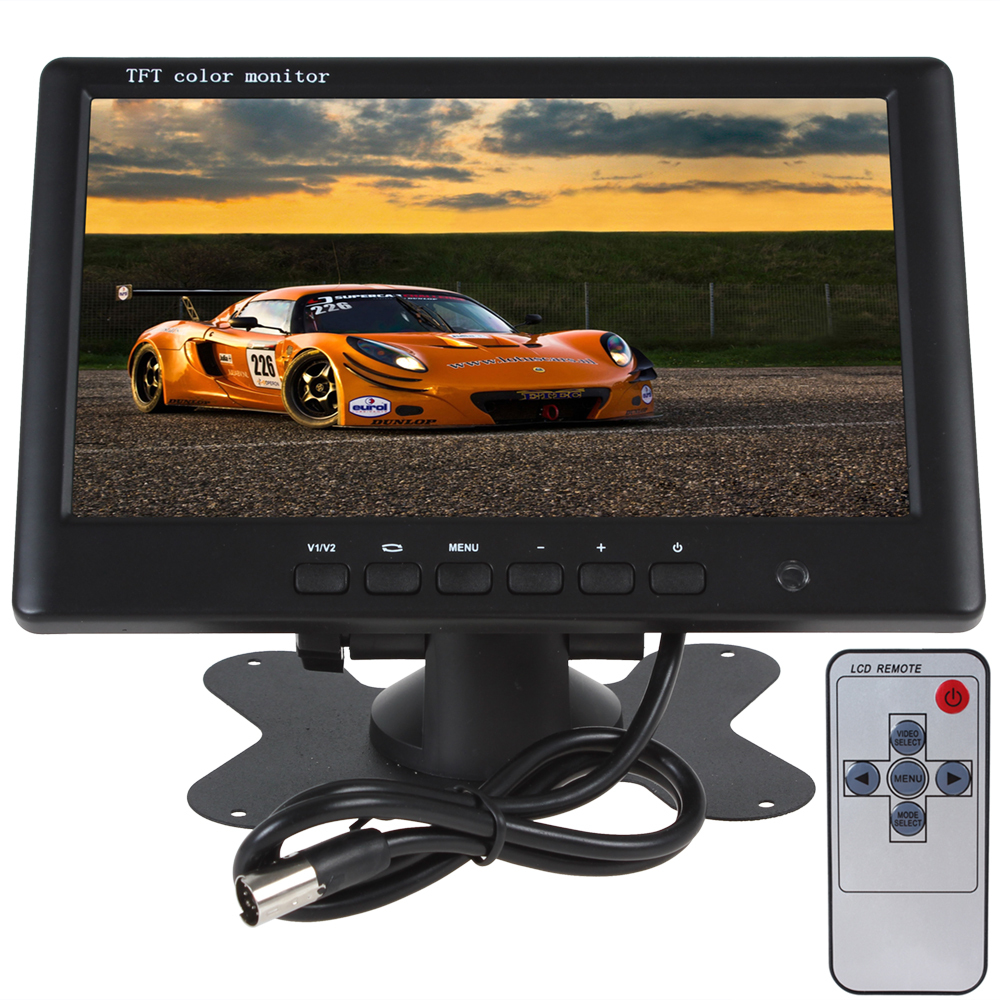

This car rear view monitor comes with 7 inch screen and supports 2 channels video input(AV1: DVD/camera video signal, AV2: the reversing signal). Its pixel is 800 x 480 which can display clear image, what's more, the image can turn up / down / left / right. It works perfectly with car DVD, VCD, camera, STB, satelte receiver and other video equipment. All the functions of this rear view monitor can be remote operated, very convenient and fast. Widely used in buses, commercial vehicles, container trucks, trucks, engineering vehicles, fire trucks, ships and other forms of transport.   Main Features: - 7 inch LCD screen, 800 x 480 pixel, vivid color
- Save reversing time, stable system and working performance
- DC 12V / 24V input, easy installation, widely used for various vehicles
- Suitable for cold vehicle whose power supply voltage is not stable
- Strong anti-interference, built in overheating over-current protection function
- Reversing priority & automatic wake-up function, automatically switches to reverse picture at any state and back to the original state after reversing is completed
- 2 channels video input(AV1: DVD/camera video signal, AV2: the reversing signal)
- Can manually choose get off / reverse picture on the display screen

Specifications:>

Features:
- 7 inch LCD screen, 800 x 480 pixel, vivid color
- Save reversing time, stable system and working performance
- DC 12V / 24V input, easy installation, widely used for various vehicles
- Suitable for cold vehicle whose power supply voltage is not stable
- Strong anti-interference, built in overheating over-current protection function
- Reversing priority & automatic wake-up function, automatically switches to reverse picture at any state and back to the original state after reversing is completed
- 2 channels video input(AV1: DVD/camera video signal, AV2: the reversing signal)
- Can manually choose get off / reverse picture on the display screen> Function of keys:
- "V1/V2": AV1/AV2 video quick switch, press the key to switch the cycle of AV1/AV2 video picture
- "MENU": Press the key can circularly open menu
- "-": Select the down regulating parameters in the menu
- "+": Select the up regulating parameters in the menu
- "POWER": On / Off> Connection Method: Red wire is connected to the +12V / 24V DC, black wire to the +12 / 24(GND), green wire to the reversing forced wire, AV plug to camera(AV2), AV socket to DVD VIDEO(AV1)> Screen Size: 7 inches> Display Component: Color TFT LCD> Screen Ratio: 16:9 / 4:3 adjustable> Pixel: 800 x 480> System: PAL / NTSC system(auto switch)> Contrast Ratio: 350:1> Housing Material: ABS> Power Supply: DC 12V / 24V> Power: 6W> Color: Black> Product Size: 180mm x 118mm x 15mm> Net Weight: 244g>
Package Size: 210mm x 145mm x 85mm>
Package Weight: 556g> After Sales Service: 1 Year Warranty> EPC_CMO_399>

Package Include:>

1 x Monitor> 1 x Bracket> 1 x AV Cable> 1 x Remote Control> 1 x Installation Accessory> 4.3 Inch Color TFT LCD Parking Car Rear view Monitor Car Rearview Backup Monitor 4.3'' 2 Video Input for Reverse Camera DVD[SALE] 480 x 272 4.3 Inch TFT LCD Car Rear View Mirror Monitor Parking Rearview Monitor + 7 IR Lights Car Reverse Camera2.4GHz Wireless Car Monitor 7 Inch 800 x 480 Color TFT LCD Car Rear View Rearview Monitor + Wireless Backup Reverse Camera7 Inch Color TFT LCD MP5 Car Rear View Mirror Monitor Auto Vehicle Parking Rearview Monitor SD/USB FM Radio For Reverse Camera[SALE] Univeral 4.3 Inch Color TFT LCD Parking Car Rear View Mirror Monitor 4.3'' Rearview Monitor for Backup Reverse Camera7 Inch RGB Car Rearview Monitor Digital Display Car VCR Monitor + 120 Degree Wide Angle 7 IR Lights Car Rear View Reverse Camera7 Inch 800 x 480 RGB Car Rearview Monitor Digital Display Car VCR Monitor + Wireless Car Rear view Reverse Camera Night Vision[SALE] 4.3 Inch Color TFT LCD Car Rear view Monitor 4.3'' Parking Rearview Monitor with 2CH Video Input / 960H x 240V Resolution
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.730kg (1.61lb.)
Package Size: 11cm x 11cm x 11cm (4.33in x 4.33in x 4.33in)
