Item specifics
Technology: Infrared
Brand Name: ESCAM Power Supply(V): - Power Consumption(W): - Sensor: CMOS Ships From: Guangdong, China ( Mainland ) Dimensions (L x W x D)(mm): (D x H): 120 x 80mm Special Features: Waterproof / Weatherproof Viewing Angle (Degree): 70 degrees Connectivity: Closed System/CCTV Wired Supported Mobile Systems: Android Supported Operating Systems: Windows XP,Windows Vista,Windows 7
Type: IP Camera Lens (mm): 3.6mm Minimum Illumination(Lux): Color: 0. 1Lux / F1.2, B/W: 0.01Lux / F1.2,0Lux (IR on) High Definition: 720P(HD) Style: Dome Camera
Model Number: QD500 Place of Origin: Guangdong, China ( Mainland ) After Sales Service: 1 Year Warranty

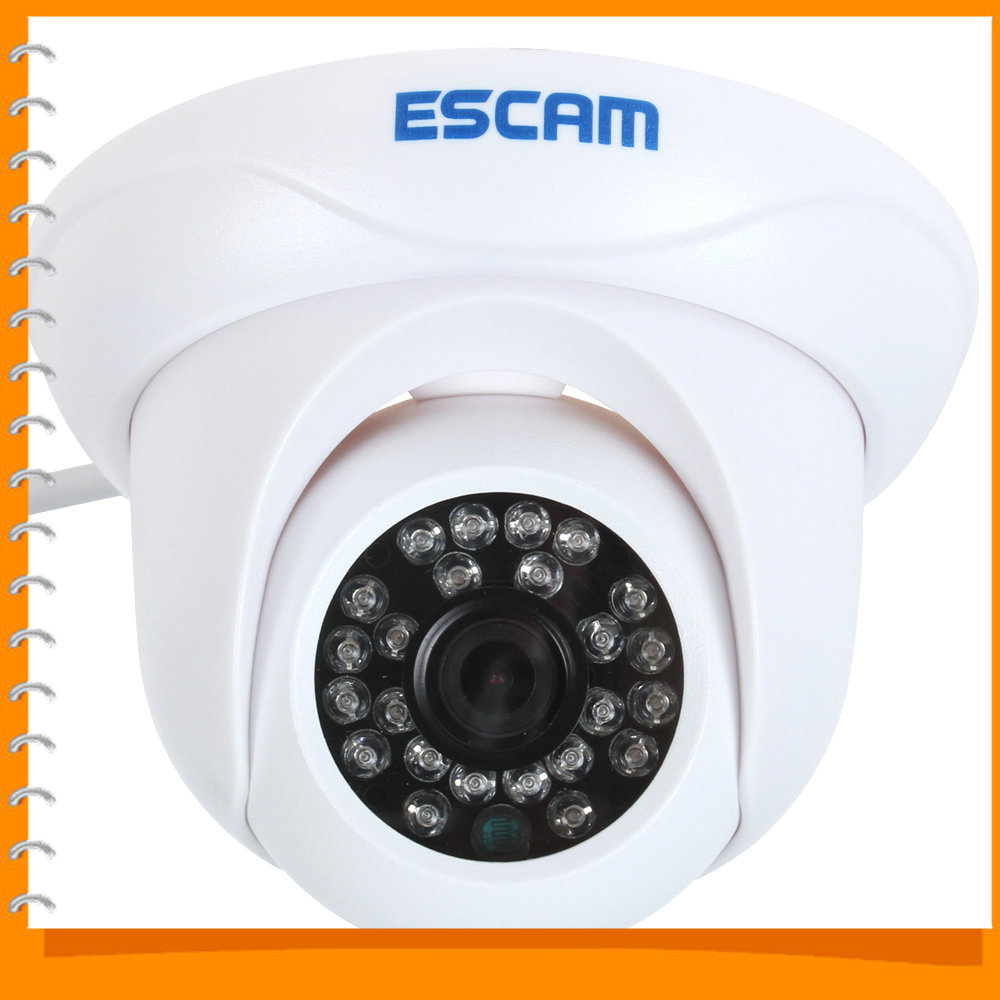

ESCAM QD500 H.264 3.6mm HD 720P 1/4" CMOS P2P Cloud IP 24 IR LEDs Dome Camera

The sea snail style camera has compact design, pure white color and nice appearance. Dual stream encording, H.264 HD 720P , onvif compant, 1/4" CMOS sensor, 3.6mm fixed lens, Φ5 24pcs IR LEDs IR range 10m. Motion detection & email alarm, when motion detected, system will trigger alarm email which can be got by the user on PC or mobile phone. This camera supports 4pcs privacy areas, providing security as well as leaving private space. Main Features:- Adopt H.264 compression algorithm
- Megapixel resolution, high definition video
- Support dual stream
- Onvif compant
- Support P2P, Cloud
- Android / iPhone smart phone APP
- Compact design, high reabity
- Web viewer / CMS multiple network monitoring
- Waterproof

Specifications:>

Features:
- Adopt H.264 compression algorithm
- Megapixel resolution, high definition video
- Support dual stream
- Onvif compant
- Support P2P, Cloud
- Android / iPhone smart phone APP
- Compact design, high reabity
- Web viewer / CMS multiple network monitoring
- Waterproof> Model: QD500> Image Sensor: 1/4" 1Megapixel progressive scan CMOS> Effective Pixels: 1280(H)x720(V)> Scanning System: Progressive> Electronic Shutter Speed: Auto / Manual 1/3(4)~1/10000s> Min. Illumination: Color: 0. 1Lux / F1.2, B/W: 0.01Lux / F1.2,0Lux (IR on)> S/N Ratio: > 50dB> Max. IR LEDs Length: 10m> Day/Night: Auto(ICR) / Color / B/W> Backght Compensation: BLC / HLC / DWDR> White Balance: Auto/Manual> Gain Control: Auto/Manual> Noise Reduction: 3D> Privacy Masking: Up to 4 areas> Lens:
- Focal Length: 3.6mm
- Max Aperture: F1.8
- Focus Control: Manual
- Angle of View: H: 70 degrees
- Lens
Type: Fixed lens
- Mount
Type: Board-in Type> Video:
- Compression: H.264 / MJPEG
- Resolution: 720P(1280 x 720) / D1(704 x 576/704 x 480) / CIF(352 x 88/352 x 240)
- Frame Rate: Main Stream: 720P(1 ~ 25/30fps) / Sub Stream: D1/CIF(1 ~ 25/30fps)> Bit Rate: H.264: 16K ~ 8192Kbps> Network:
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: IPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
- ONVIF: ONVIF Profile S
- Max. User Access: 10 users
- Smart Phone: iPhone, iPad, Android
- P2P: iPhone, Android Mobile App> Power Supply: DC12V 1A> Power Consumption: < 4W> Working Environment: -30 ~ +60,< 95%RH> Dimensions(D x H): 120 x 80mm> Weight: 302g> Package Dimensions: 140mm x140mm x110mm>
Package Weight: 414g> After Sales Service: 1 Year Warranty> EPC_SUR_116>

Package Include:>

1 x Camera> 1 x Driver Disk> 1 x Installation Accessories> 1 x Charger> 1 x Manual>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.590kg (1.30lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
