Item specifics

Model Number: MFRC-522
Brand Name: - Warranty: 1 year Place of Origin: Guangdong, China (Mainland) Operating Frequency: 13.56MHz Data Transfer Rate: Maximum 10Mbit/s

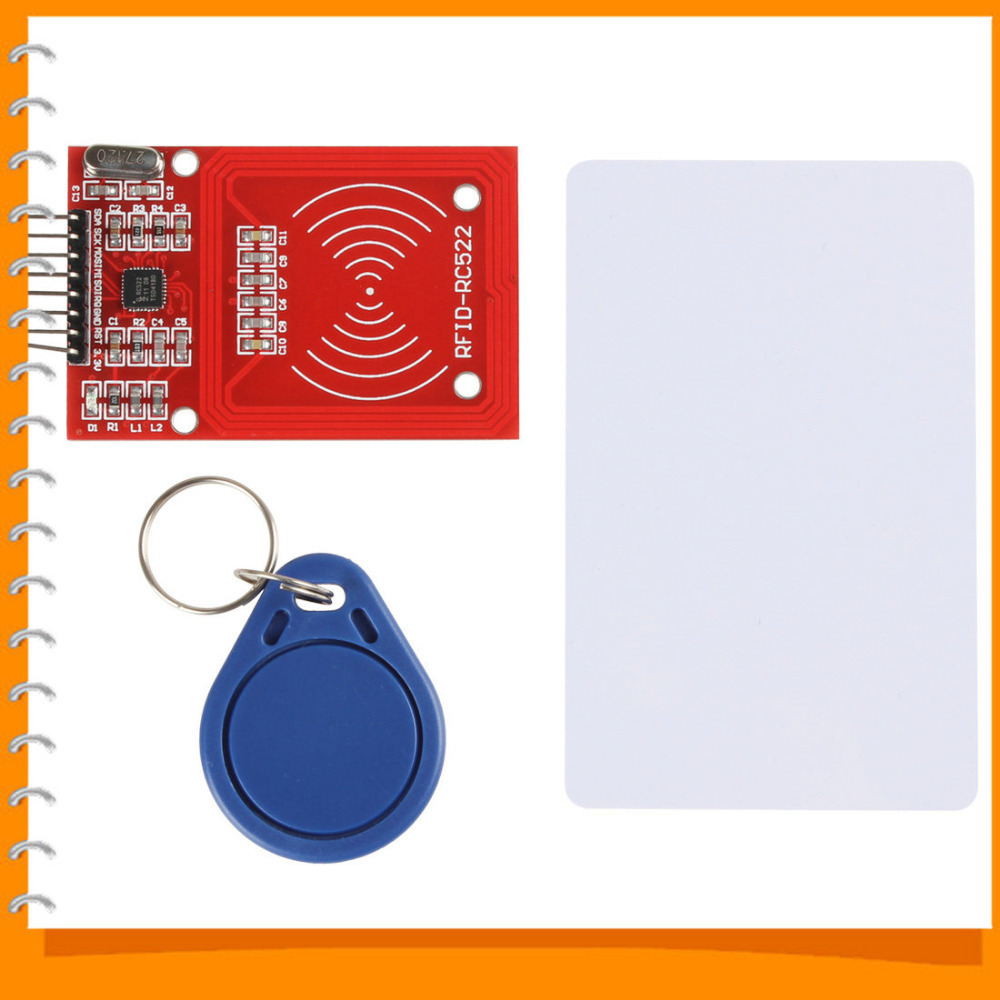

13.56Mhz RFID module kit with ID card and round key chain tag. SPI interface for convenient interface to microcontrollers such as Arm/AVR/Pic/Arduino, etc. The RFID reader module can be used in a wide variety of hobbyist and commercial appcations, including access control, automatic identification, robotics, navigation, inventory tracking, systems, and car immobisation Main Feature: - MF RC522 is apped to the highly integrated read and write 13.56MHz contactless communication card chip. Low-voltage, low-cost, small size of the non-contact card chip to read and write smart meters and portable handheld devices developed better choice
- The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. 14443A compatible transponder signals
- The digital part of to handle the ISO14443A frames and error detection.
- Support rapid CRYPTO1 encryption algorithm, terminology vadation products. MFRC522 support high-speed non-contact communication, two-way data transmission rate up to 424 Kbit/s
- MF RC522 are similar to MF RC500 MF RC530 , but also have the characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs
- The MF522-AN module design circuit card reader, easy to use
- Low cost, and appes to the user equipment development
- The reader and advanced appcations development meet the user RF card terminal design/production needs
- This module can be directly loaded into the various reader molds, very convenient

Specifications:>

Features:
- MF RC522 is apped to the highly integrated read and write 13.56MHz contactless communication card chip. Low-voltage, low-cost, small size of the non-contact card chip to read and write smart meters and portable handheld devices developed better choice
- The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. 14443A compatible transponder signals
- The digital part of to handle the ISO14443A frames and error detection.
- Support rapid CRYPTO1 encryption algorithm, terminology vadation products. MFRC522 support high-speed non-contact communication, two-way data transmission rate up to 424 Kbit/s
- MF RC522 are similar to MF RC500 MF RC530 , but also have the characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs
- The MF522-AN module design circuit card reader, easy to use
- Low cost, and appes to the user equipment development
- The reader and advanced appcations development meet the user RF card terminal design/production needs
- This module can be directly loaded into the various reader molds, very convenient> Operating Current: 13-26 mA / DC 3.3V> Idle Current: 10-13 mA / DC 3.3V> Sleep Current: < 80uA> Peak Current: < 30mA> Operating Frequency: 13.56MHz> Environmental Operating Temperature: -20-80 degrees Celsius> Environmental Storage Temperature: -40-85 degrees Celsius> Relative Humidity: Relative humidity 5% -95%> Data Transfer Rate: Maximum 10Mbit/s> Size: RFID-RC522 Module: 3.9 x 6 cm> Standard S50 Blank Card: 8.5 x 5.4 cm> Diameter of S50 Special-shaped Card: 3.1(max)> Net Weight: 17g>
Package Weight: 20g> After Sales Service: 1 Year Warranty> EPC_DBP_701>

Package Include:>

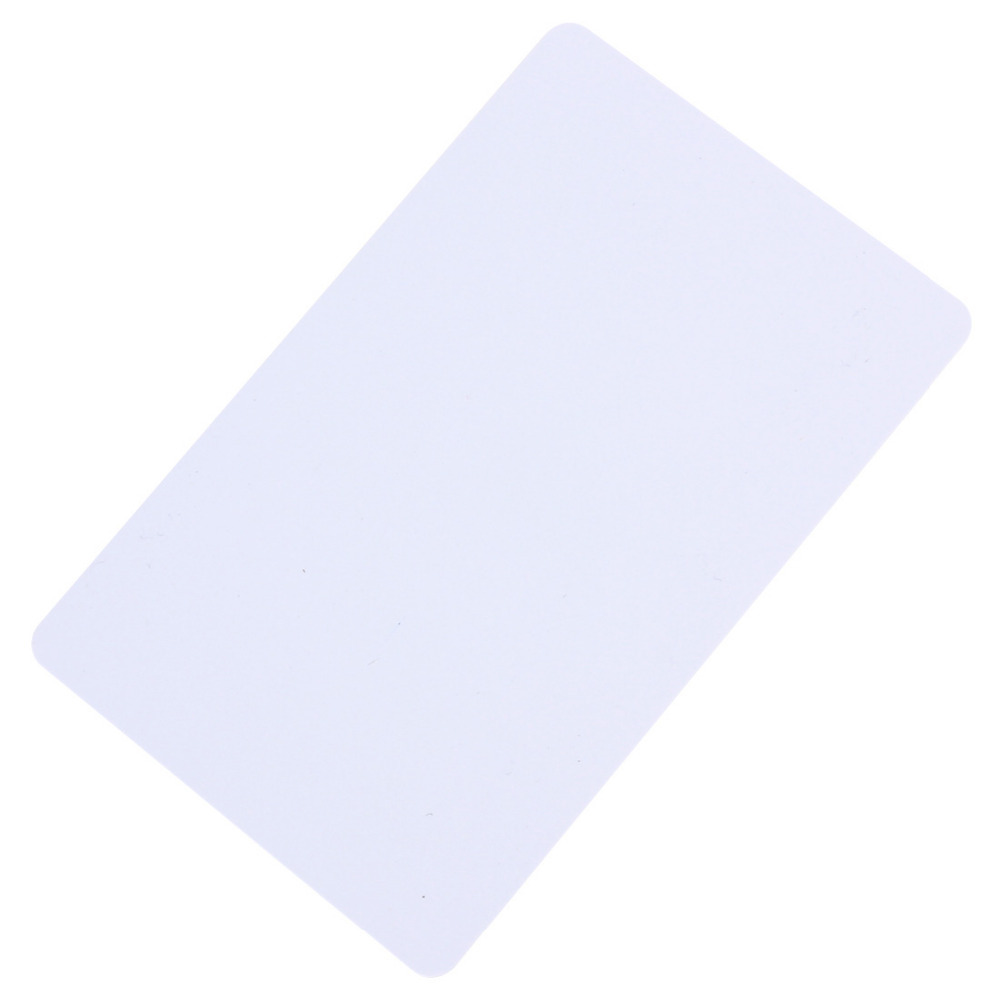

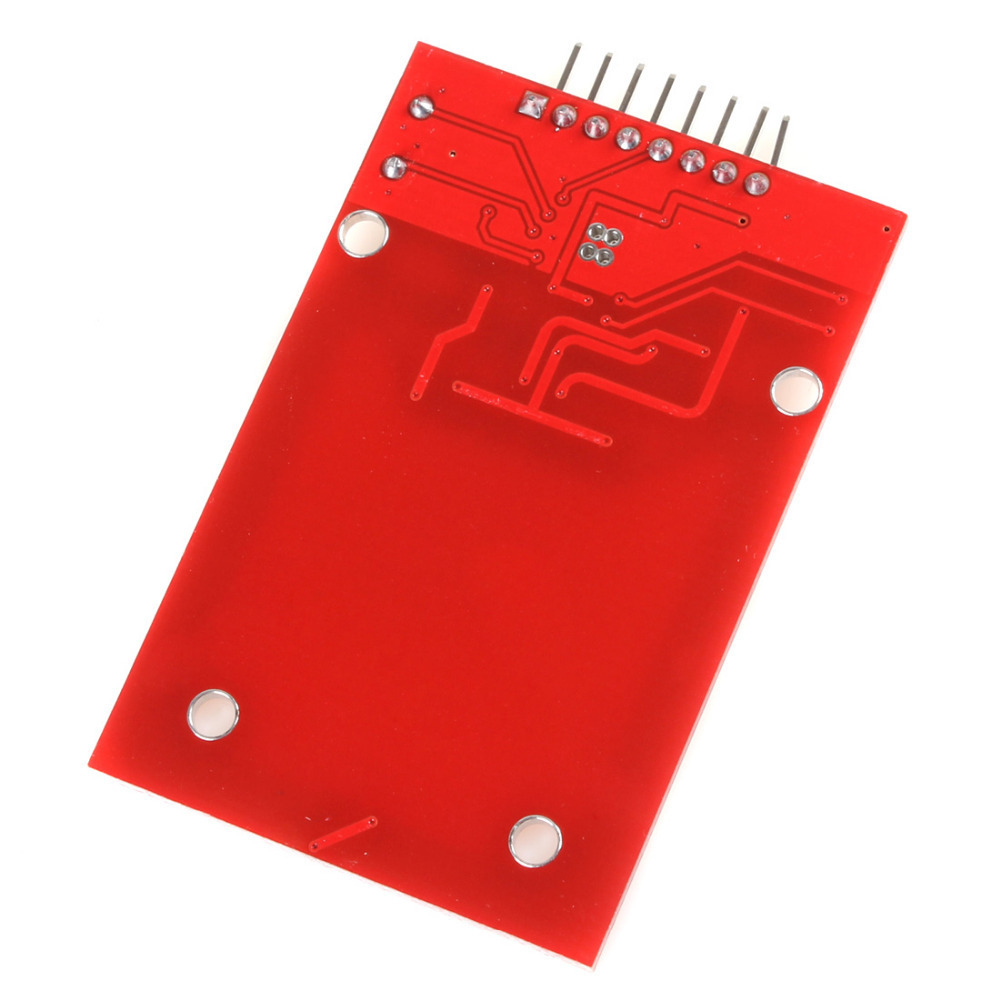

1 x A RFID-RC522 Module> 1 x The Standard S50 Blank Card> 1 x S50 Special-shaped Card>
Product Description
Packaging Details Unit
Type: set
Package Weight: 0.030kg (0.07lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
