Item specifics

Type: Logic ICs Application: Computer Supply Voltage: 9V Dissipation Power: 5W
Brand Name: Brand New
Model Number: SKU249257
is_customized: Yes Condition: New

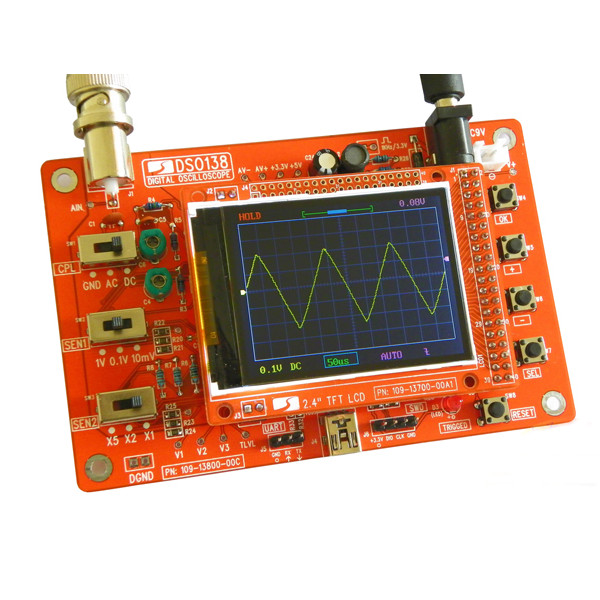

Description:

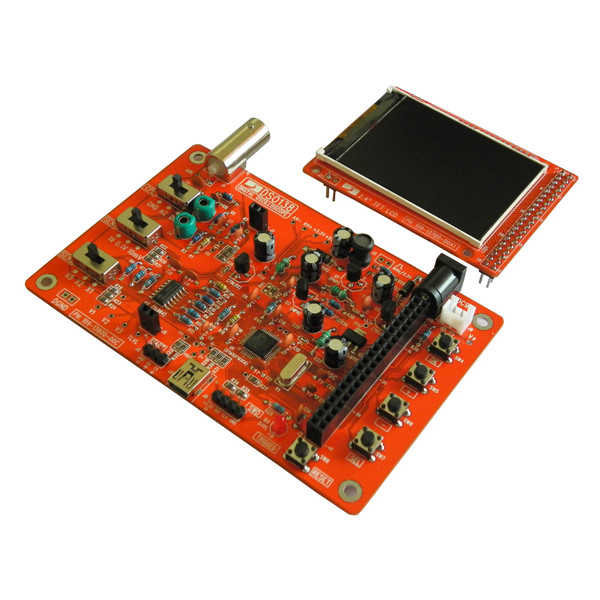

PCB size: 117 x 76mm
Screen size: 52 x 40mm
Supply voltage: for D C 9V

Characteristics of indicators:

Maximum real-time sampng rate: 1Msps
Accuracy: 12Bit
Sampng buffer depth: 1024 bytes
Analog bandwidth: 0 - 200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Adjustable vertical displacement, and with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupng modes:for D C / AC / GND
The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
With automatic, regular and one-shot mode, easy to capture the moment waveform
Available rising or falng edg-e trigger
Adjustable trigger level position, and with instructions
Observable previous trigger waveform (negative delay)
Can freeze at any time waveform display (HOLD function)
Comes 1Hz /3.3V square wave test signal source

Note: This is a DIY kit, need to have some basic electronic activity and abity, because of different levels of abity and technical, we can not guarantee that everyone can DIY success, but we are committed to do our best of after-sales service.


Package included:

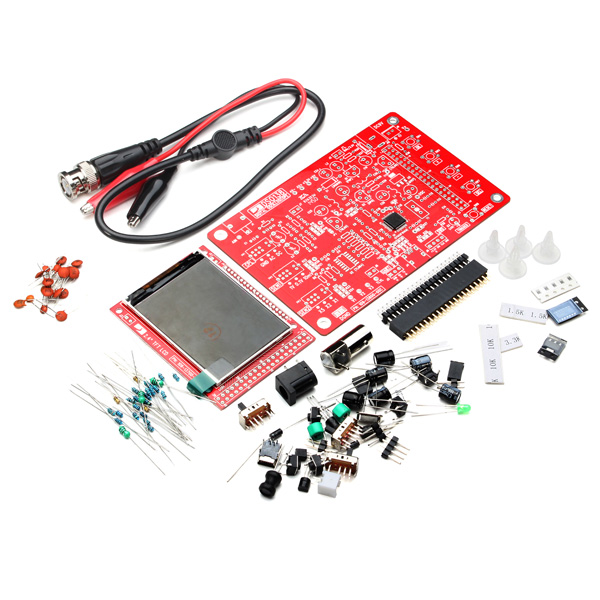

1 x DIY Digital Oscilloscope Kit
