Item specifics
Item
Type: Car Monitors Placement: In-Dash Display Size: 7" Item Size: 193mm x 133mm x 25mm Resolution: 480x234 Material
Type: ABS Item Weight: 347 g Place of Origin: Guangdong, China (Mainland) Warranty: 1 Year Power Supply: : DC 12V / 24V Color: : Black Camera Resolution: : 420 TV lines Camera Water-proof: : IP68 Camera Lens Angle: : 18mm / 120 degrees

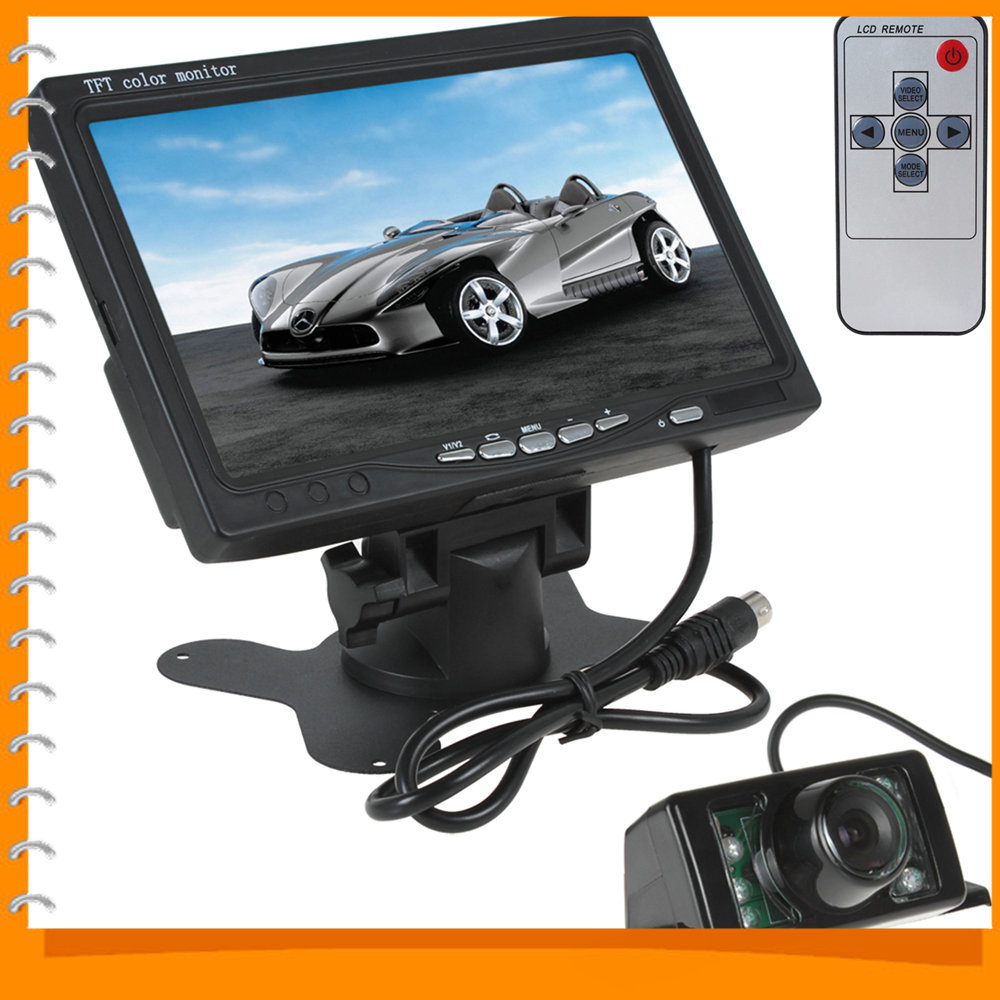

This car rear view monitor adopts the newest A standard 7 inch TFT LCD screen and supports 2 channels video input(AV1: DVD/camera video signal, AV2: the reversing signal). Equipped with a card type full function remote control and supports Chinese, Engsh, Japanese and other language. The 7 IR Lights car rear view camera display a reversed camera image on the monitor to dupcate the normal view seen in a rear view mirror. Perfect for car, boat or other vehicles.   Monitor Features:
- Adopts the newest A standard 7 inch TFT LCD screen
- 2 channels video input
- Can be matched with different color car interior decorations
- Equipped with a card type full function remote control
- Multi-language function   Camera Features:
- High-definition & high-sensitivity, 420TV nes.
- Waterproof, weatherproof, shockproof function.
- Support night vision.
- 120 degree wide viewing angles.

Specifications:>

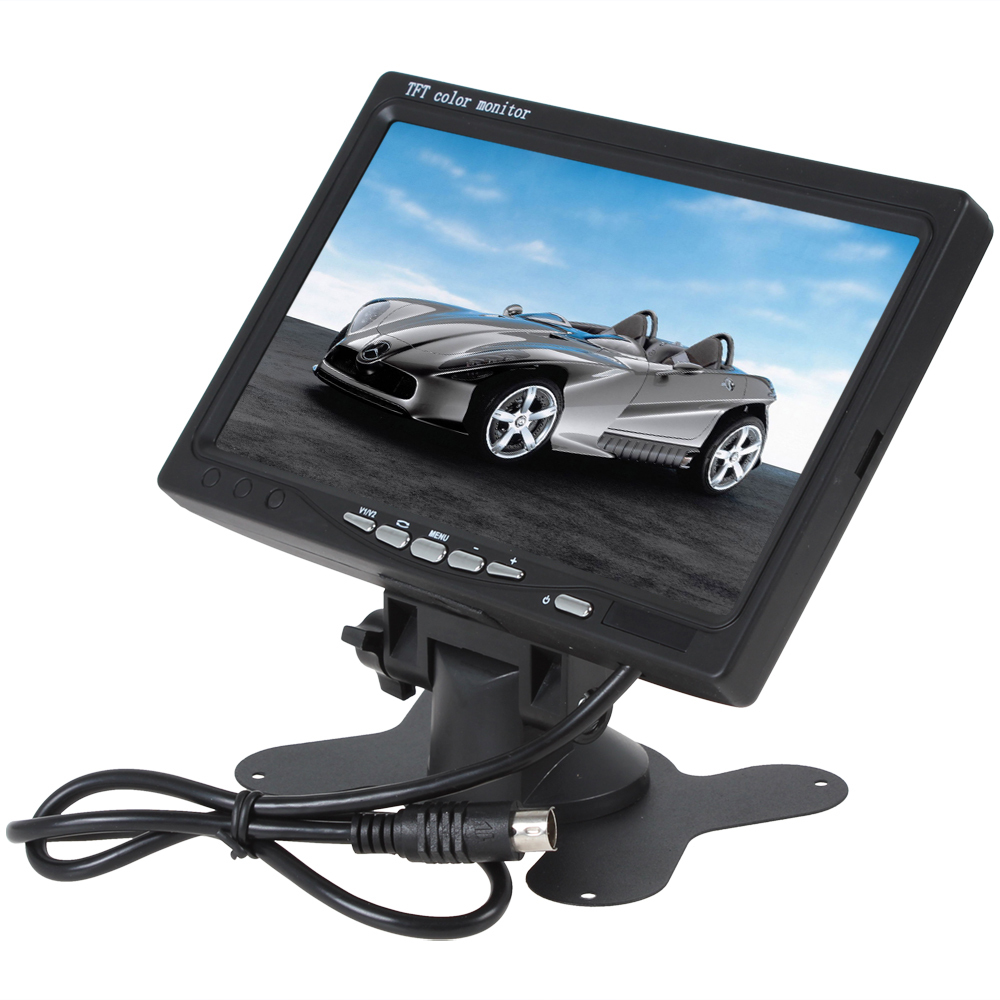

7 Inch Car Rear View Monitor > Features:
- Adopts the newest A standard 7 inch TFT LCD screen
- 2 channels video input
- Can be matched with different color car interior decorations
- Equipped with a card type full function remote control
- Multi-language function> Function of keys:
- "V1/V2": AV1/AV2 video quick switch, press the key to switch the cycle of AV1/AV2 video picture
- "MENU": Press the key can circularly open menu
- "-": Select the down regulating parameters in the menu
- "+": Select the up regulating parameters in the menu
- "POWER": On / Off> Connection Method: Red wire is connected to the +12V / 24V DC, black wire to the +12 / 24(GND), green wire to the reversing forced wire, AV plug to camera(AV2), AV socket to DVD VIDEO(AV1)> Screen Size: 7 inches> Display Component: Color TFT LCD> Screen Ratio: 16:9> Pixel: 234 x 480> System: PAL / NTSC system(auto switch)> LED Backght Brightness: 500 cd/m2> Contrast Ratio: 350:1> Power Supply: DC 12V / 24V> Power: ≤7W> Audio Output: Yes> Color: Black> Product Size: 193mm x 133mm x 25mm> Net Weight: 347g>
Package Size: 210mm x 145mm x 85mm>
Package Weight: 663g> 7 IR Lights Car Rear View Camera> Features:
- High-definition & high-sensitivity, 420TV nes.
- Waterproof, weatherproof, shockproof function.
- Support night vision.
- 120 degree wide viewing angles.> Image Sensor: 1/4 CMOS> TV System: NTSC / PAL> Effective Pixels:
- NTSC: 728 x 628, 828 x 686
- PAL: 628 x 586> Scanning System: 2 : 1 Interface> Sync System: Internal> Resolution: 420 TV nes> Lens Angle: 1.8mm / 120 degrees> Sensor Area: 5.961 x 4.276mm> Video Output: 1.0Vp-p,75ohm> S / N Ratio: More than 48db> Waterproof: IP68> White Balance: Auto> Power: 60mA> Consumption: Max 300mA with IR on> Power Supply: DC 12V> Operating Temperature: - 20 ~ + 80 Centigrade> Storage Temperature: - 40 ~ + 80 Centigrade> Net Weight: 54g>
Package Weight: 180g> After Sales Service: 1 Year Warranty> EPC_CMO_329>

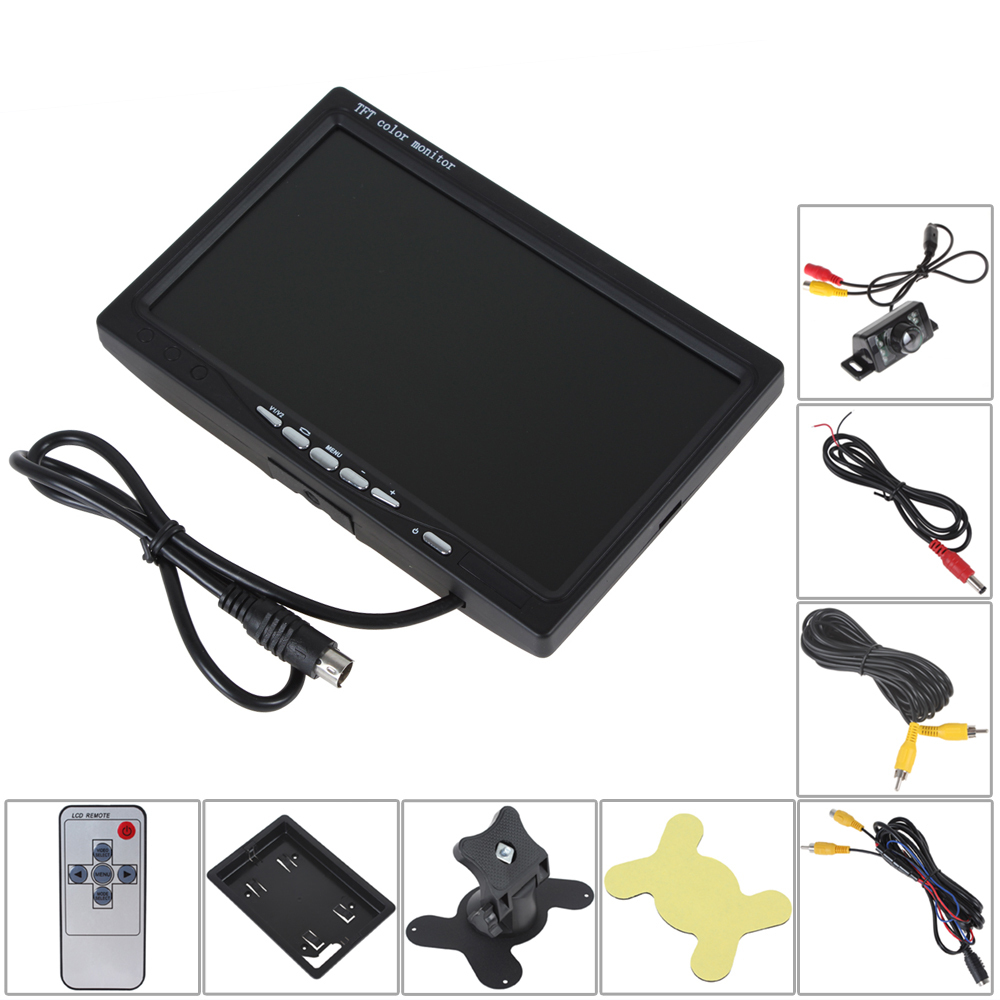

Package Include:>

1 x Monitor> 1 x Remote Control> 1 x AV Cable> 1 x Bracket> 1 x Camera> 1 x User Manual>
Product Description
Packaging Details Unit
Type: set
Package Weight: 0.870kg (1.92lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
