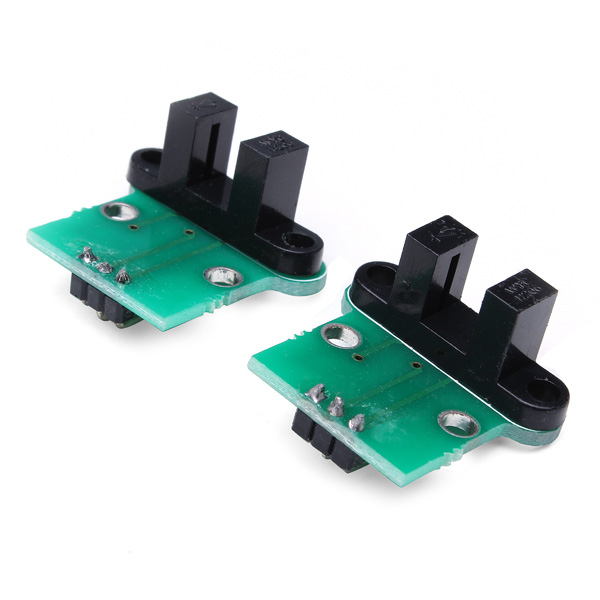

HC-020K Double Speed Measuring Module With Speed Encoder Kit

Feature:

HC-020K is a high resolution, short response speed, wide voltage switch output speed measuring module, with black encoder can measure motor speed (Now provide the encoder type D, hole diameter is 4 mm. Can be used to output shaft is 4 mm motor).

Description:

Working voltage: 4.5V to 5.5 V.
Transmit tube pressure drop: Vf = 1.6 V
Transmit tube current: 20 mA
Signal output: A, B two way; The TTL level
Distinguish precision: 0.01 mm
Measurement frequency, 100 KHZ

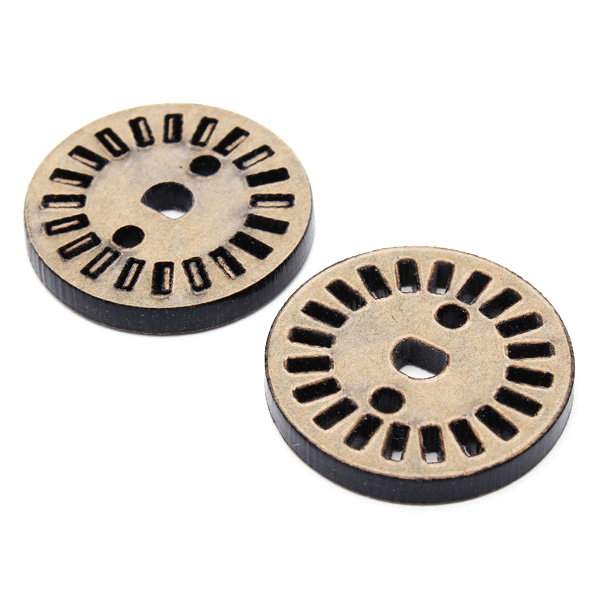

Encoder diameter: 24 mm
Encoder type D hole diameter: 4 mm
The encoder resolution: 20 ne
Speed measuring sensor configuration: The configuration can measures 1 road motor speed

Note: This is for RP5 tank for caterpillar vehicles speed measuring module, just hit four holes in the RP5 tracked vehicle

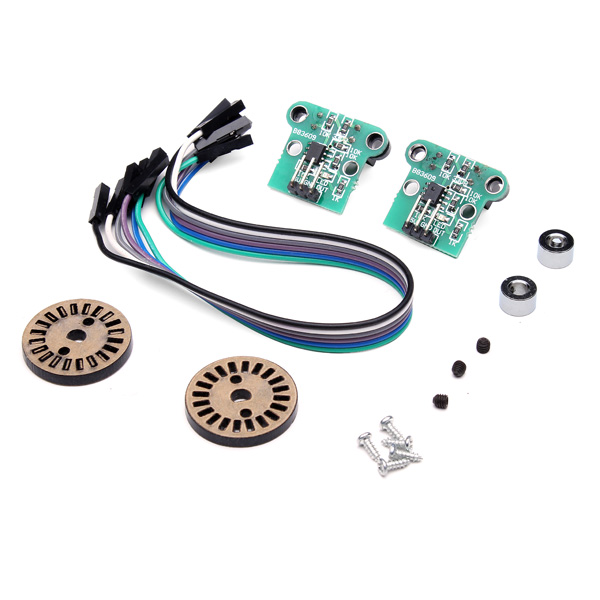

Package included:

1 x RP5 Double Speed Measuring Module kit
