Item specifics
Technology: Infrared
Brand Name: - Sensor: CMOS Connectivity: Closed System/CCTV Wired Supported Operating Systems: Windows XP,Windows Vista,Windows 7
Type: Video Camera High Definition: 480P(SD) Style: Box Camera
Model Number: - Lens (mm): - Funtion:: 380 TV lines CMOS Box Security CCTV camera Horizontal resolution:: 380TVL Color:: Black TV System:: PAL / NTSC

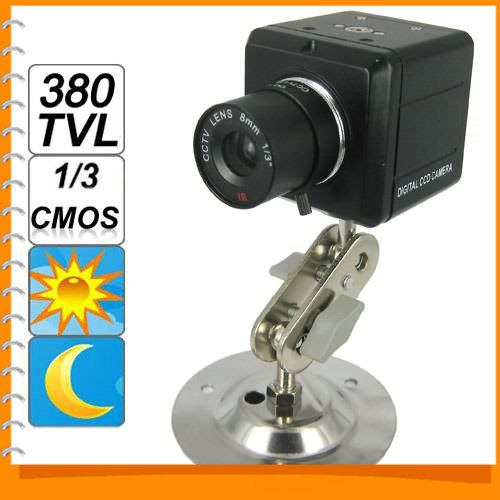

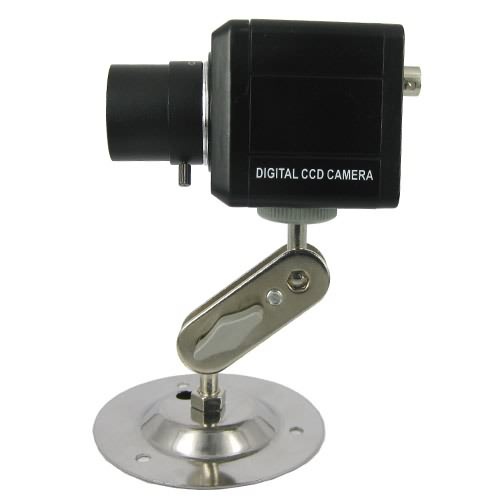

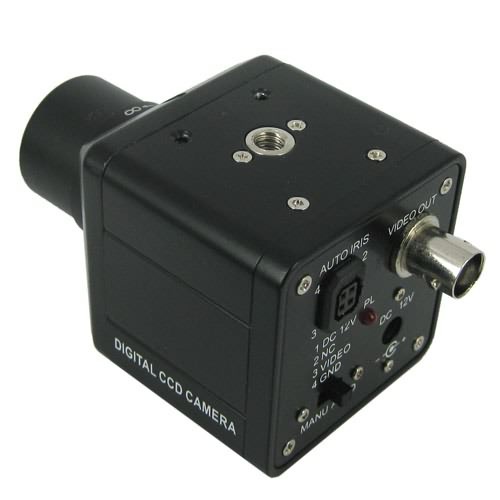

Portable Box Design 380 TV Lines CMOS IR Security Camera

Small in size,easy to be hidden and portable. The camera is with high resolution for monitoring, support brightness Control Manual, Day and night function (IR Cut Filter), Auto Iris, Auto Gain System (AGC), Auto Backght Compensation (BLC) and internal sync system.   Main Features:
- With high resolution for monitoring
- Small in size,easy to be hidden and portable
- Support brightness Control Manual
- Support Day and night function (IR Cut Filter)



Specifications:>

Function:380 TV nes box CCTV security camera > Image Sensor: 1/3 inch CMOS image sensor > Horizontal Resolution: 380TVL > Main Features:
- With high resolution for monitoring
- Small in size,easy to be hidden and portable
- Support brightness Control Manual
- Support Day and night function (IR Cut Filter) > Support Auto Iris, Auto Gain System (AGC), Auto Backght Compensation (BLC) > Support internal sync system > Zoom Speed: 8/11/14 Sec> Zoom/Focus Preset: 128 preset points > Lens:
- Diameter: 4mm
- Zoom: 22x optical / 16x digital > TV System: PAL / NTSC > Pixels:
- NTSC: 510 x 492

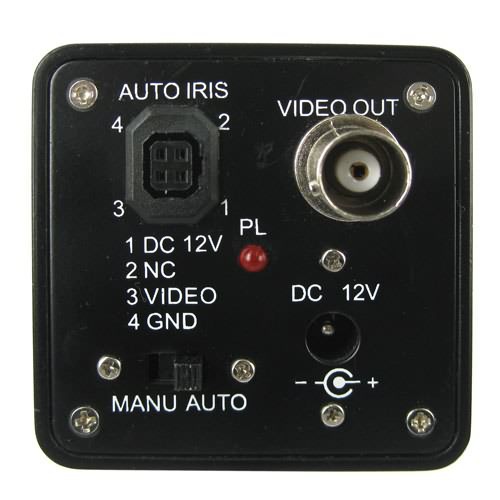

- PAL: 500 x 582 > Camera control via RS-232 (TTL Level)> Mini Illumination: 0.2Lux> S/N Ratio:≥48dB> Electronic Shutter:
- NTSC: 1/60~1/30,000
- PAL: 1/50~1/30,000 sec > FLICKERLESS On/Off:
- NTSC: 1/100
- PAL: 1/120 > Min. Shooting Distance:
- WIDE: 0.01m
- TELE: 1.5m > Iris Control: Auto/Manual > Digital Zoom Ratio: 16x, 2x-16x variable > Camera Control: RS-232 (TTL)> Remote Control: 6-pin connector (Dry Contact)> AE Mode: Auto/Manual/Push Auto > Day & Night Push: Auto/Auto/Special/Indoor/Outdoor/Manual > Auto White Balance: Auto/Manual/Indoor/Outdoor > Auto Gain System: Auto/Manual > Backght Compensation: On/Off/Auto> Video Output: 1.0Vp-p75Ω> Power Supply: DC12V > Power Consumption: 342mA> Operating Temperature: -10 to 50 degree C > Dimensions(L x W x D):5cm x 5cm x 5cm > Material: Aluminum Alloy > Color: Black> Approved: CE / FCC > EPC_CCT_304>

Accessories:>

1 x Power Adapter> 1 x Bracket> 1 x BNC > Screws >

Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.220kg (0.49lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
