Item specifics

Brand Name: EPATH Package: Yes Application: DVD Player Connector
Type: SCART Connector B: HDMI Outer Diameter: -
Model Number: - Place of Origin:: Guangdong China (Mainland) Warranty: 1 Year Input Ports: : 1 x SCART Output Ports: : 1 x HDMI, 1 x Earphone Color: : Black

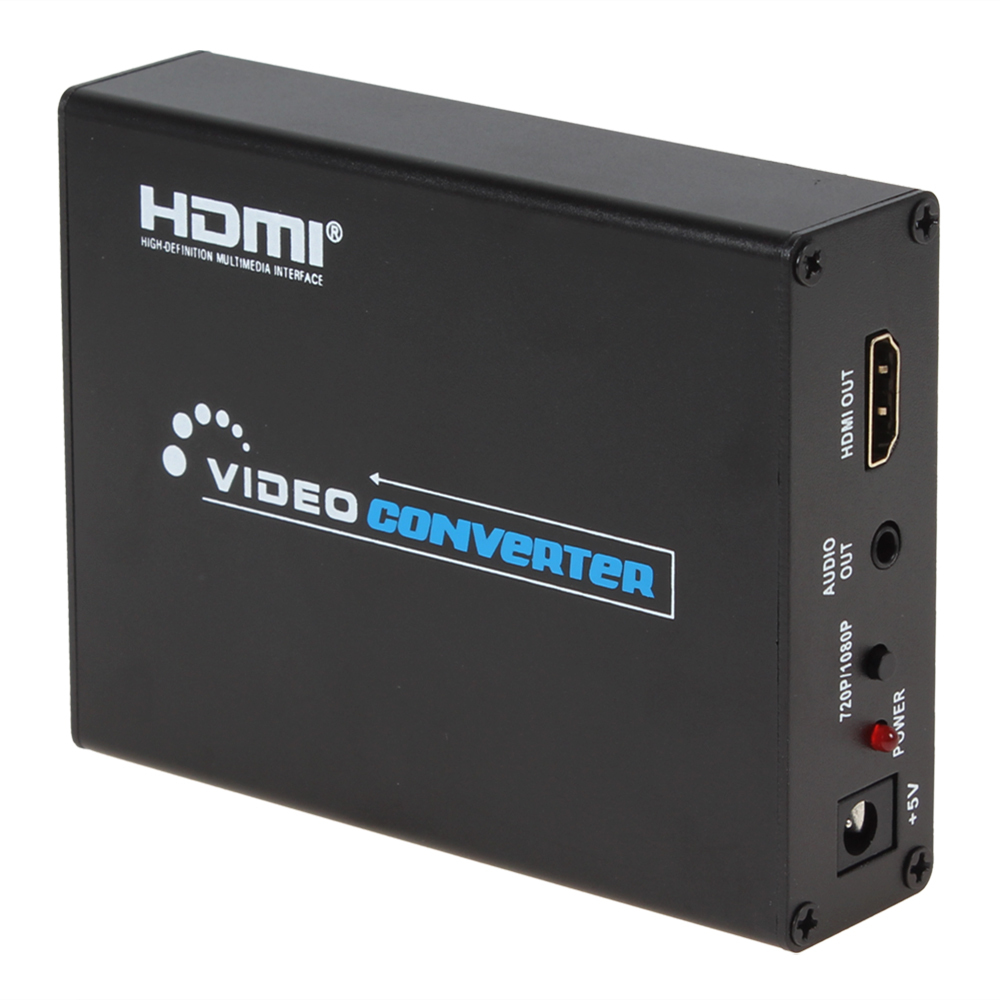

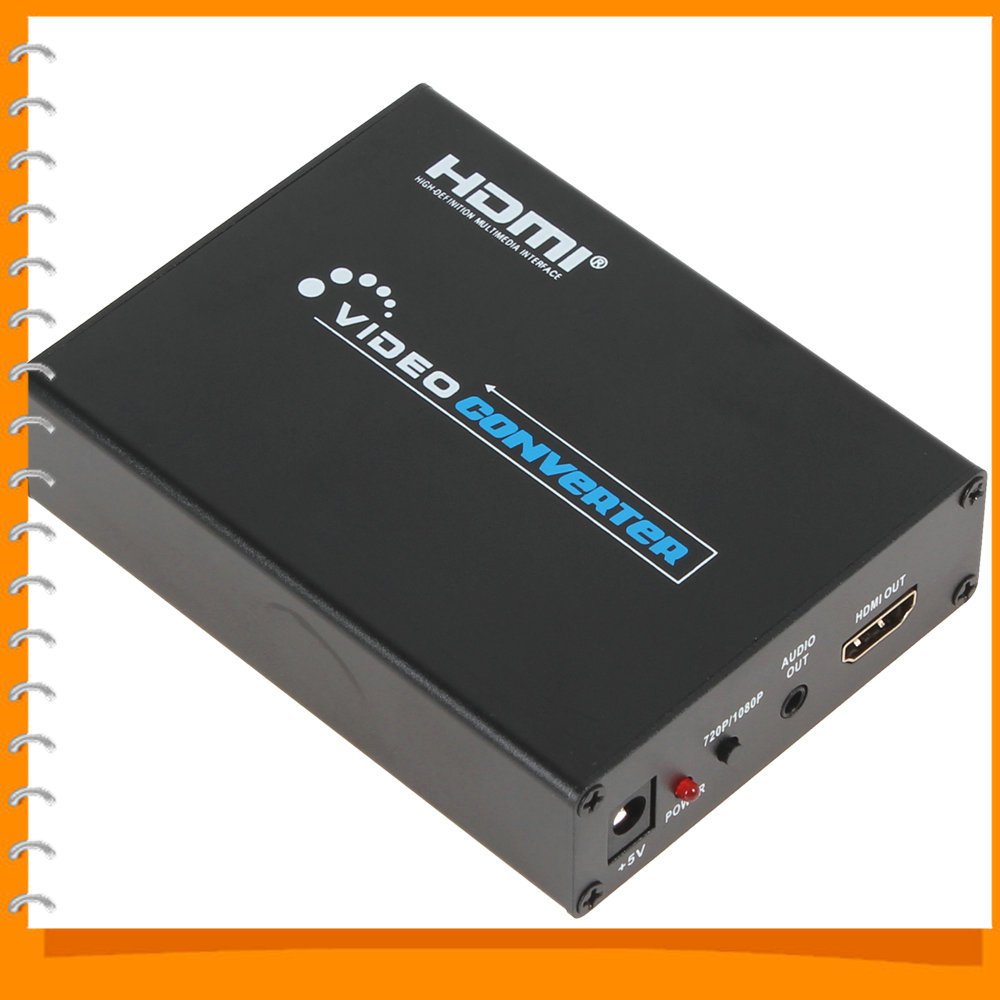

This scaler box is designed to display your analog video / YC / RGB images on HDTV. with better viewing resolutions. It can upscale any SCART input source to HDMI output with a wide- range of resolutions. Incredibly, this device can also transfer sounds allowing everyone to enjoy both HD images and sounds.   Main Functions: - Scales up SCART to HDTV resolution up to1080p
- Support input video systems NTSC / PAL / SECAM
- Digital Noise Reduction: Minimizes picture noise, reproducing images that are true to the original
- Block Noise Reduction: Effectively minimizes all MPEG noise, improving the digital quaty of HDTV broadcasts particularly where block noise happens most
- MPEG Noise Reduction: Reduce mosquito noise for MPEG video images without losing detail
- 3D (frame based) motion adaptive noise reduction
- Advanced 3D motion adaptive de-interlace
- Automatic 2:2 / 3:2 film mode detection

Specifications:>

Features:
- Scales up SCART to HDTV resolution up to1080p
- Support input video systems NTSC / PAL / SECAM
- Digital Noise Reduction: Minimizes picture noise, reproducing images that are true to the original
- Block Noise Reduction: Effectively minimizes all MPEG noise, improving the digital quaty of HDTV broadcasts particularly where block noise happens most
- MPEG Noise Reduction: Reduce mosquito noise for MPEG video images without losing detail
- 3D (frame based) motion adaptive noise reduction
- Advanced 3D motion adaptive de-interlace
- Automatic 2:2 / 3:2 film mode detection> Operation Controls and Functions:

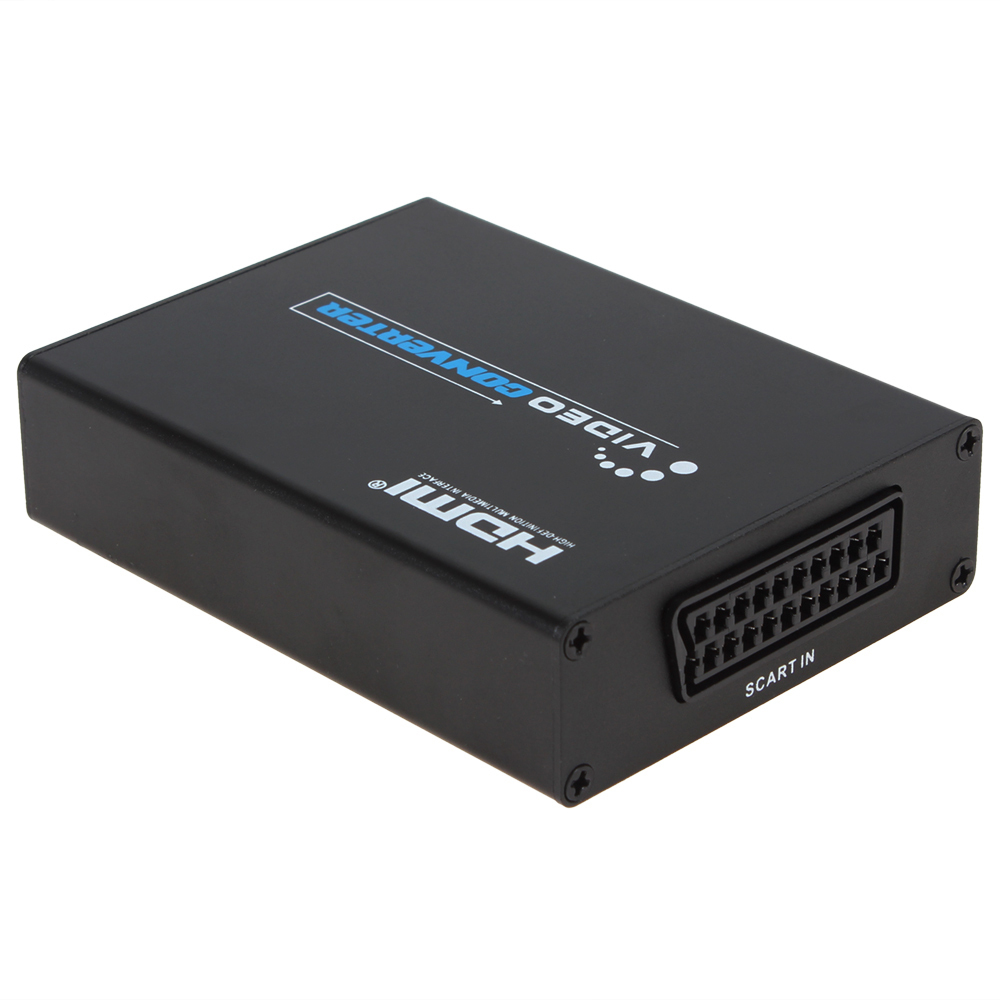

- SCART IN : This slot is where you connect the SCART source output from DVD, Set-top Box.
- +5V : Support 5V DC power supply.
- POWER : This red LED illuminate when the device is connected with power supply.
- 720P/1080P : Press this button can switch the output resolution 720p-1080p.
- AUDIO OUT: This slot is where you connect to the audio ampfier with 3.5mm earphone cable.
- HDMI OUT: This slot is where you connect to the HDTV with HDMI cable.> Connection and Installation:
- Connect a source such as DVD, game console, Satelte Receiver to the Converter SCART input.
- Connect a display such as HDTV to the HDMI output on the Converter.
- Connect the audio out to the audio ampfier or headphone by earphone cable.
- Power on the device and display.> Input Ports: 1 x SCART> Output Ports: 1 x HDMI, 1 x Earphone> SCART Input Format: PAL / NTSC 3.58 / SECAM / NTSC 4.43 / PAL-M / PAL-N> HDMI Output Resolution: 1080P 50Hz, 1080P 60Hz, 720P 50Hz, 720P 60Hz> Operating Temperature: 0 ~ 40 centigrade degree> Storage Temperature: -20 ~ 60 centigrade degree> elative Humidity: 20 ~ 90% RH (Non-condensing)> Power Consumption (Max): 3W> Human Body Model: +-8kV (air-gap discharge); +-4kV (contact discharge) > Color: Black> Item Dimensions(D x W x H): 110 x 82 x 27mm> Item Wight: 159g>
Package Weight: 328g> Package Dimensions(L x W x H): 195 x 151 x 66mm> After Sales Service: 1 Year Warranty> EPC_HMP_571>

Package Include:>

1 x SCART to HDMI Scaler Box> 1 x 5V 1A DC Power Supply Adaptor> 1 x Operation Manual>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.360kg (0.79lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
