Item specifics
Item
Type: Alarm Systems & Security Item Height: 40 mm Voltage: 12V Model Name: InCTPMS-EXT01 Item Width: 65 mm Item Length: 75 mm Material
Type: ABS Item Weight: 311 g Warranty: 1 year Place of Origin: Guangdong, China (Mainland) Function: : Tire Pressure Monitor System

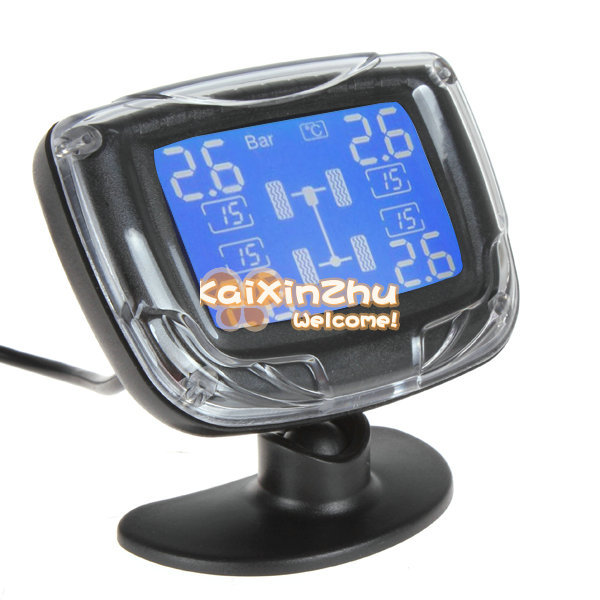

- With LCD display function which will exhibit the data of 4 tire pressures and temperatures, enables you to clearly know about the tire condition at a glance
- Quick & Simple installation, 2-minutes quick installation
- Adopts Germany's Infineon SP37 sensor & advanced pressure sensor technology
- Adopts the technology of driving induction, with more durable sensor batteries whose fespan can up to 3 years or above, and its battery replacement is simple
- With excellent imported components, ensure professional quaty
- With LCD display function which will exhibit the data of 4 tire pressures and temperatures, enables you to clearly know about the tire condition at a glance
- Quick & Simple installation, 2-minutes quick installation
- Adopts Germany's Infineon SP37 sensor & advanced pressure sensor technology
- Adopts the technology of driving induction, with more durable sensor batteries whose fespan can up to 3 years or above, and its battery replacement is simple
- With excellent imported components, ensure professional quaty > Working Principle:

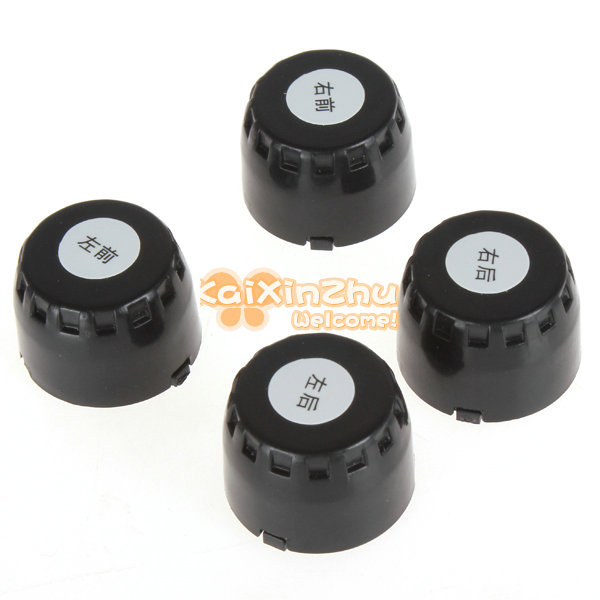

- Each tire is installed with a high sensitivity sensor transmitter, the data of real-time tire pressure and temperature are able to be transmitted to the display wirelessly.
- With audio-visual alarm prompt function, enables your to quickly know what has happened, such as tire air leakage, too high tire pressure, abnormal tire temperature. > Sensor Parameter:
- Working Frequency: 433.92MHz
- Working Voltage: 2.0 ~ 3.6V
- Working Current: < 1uA (Static Current) / < 10mA (Emission Current)
- Working Temperature: - 40 ~ + 125 degrees Celcius
- Accuracy: Accuracy: + / - 1 degrees Celcius (Temperature); + / - 0.1 Bar(Pressure) > Display Parameter:
- Working Frequency: 433.92 MHz
- Working Voltage: 9 ~ 15 V
- Working Current: < 20mA (Static Current) / < 100mA (Emission Current)
- Working Temperature: - 20 ~ + 70 degrees Celcius > Conversion of Pneumatic Unit : 1 bar = 100 kpa = 14.5 Psi = 1.02 kgf/cm > Display Size: 49 x 30mm > Monitor Dimensions(L x W x H): 75 x 40 x 65mm> Package Dimensions(L x W x H): 240 x 200 x 70mm> Monitor Weight: 98g>
Package Weight: 311g> Notes:
- Products are well matched in the factory, so do not need to worry about the matching problems except the sensor is damaged or lost.
- In standby mode, press the SET key 5 times in a row, after hearing the sound of "bi", it is in the state of tire matching, "-- --"
- Following the icon guide, short press the SET key to select the tire place you need to match with.
- Then mount the sensor on the corresponding tire, after receiving the signal, the "-- --" state will turn to "on" state, that means successfully received the signal, then long press the SET key for 3 seconds to save the new sensor ID and exit.
- If you do not long press the SET key, it will not save the new ID, and will automatically withdraw from the matching procedure after 3 minutes. > Approved: CE / FCC> After Sales Service: 1 Year Warranty> EPC_CEC_761>
Product Description
Packaging Details Unit
Type: set
Package Weight: 0.690kg (1.52lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
Item
Type: Alarm Systems & Security Item Height: 40 mm Voltage: 12V Model Name: InCTPMS-EXT01 Item Width: 65 mm Item Length: 75 mm Material
Type: ABS Item Weight: 311 g Warranty: 1 year Place of Origin: Guangdong, China (Mainland) Function: : Tire Pressure Monitor System

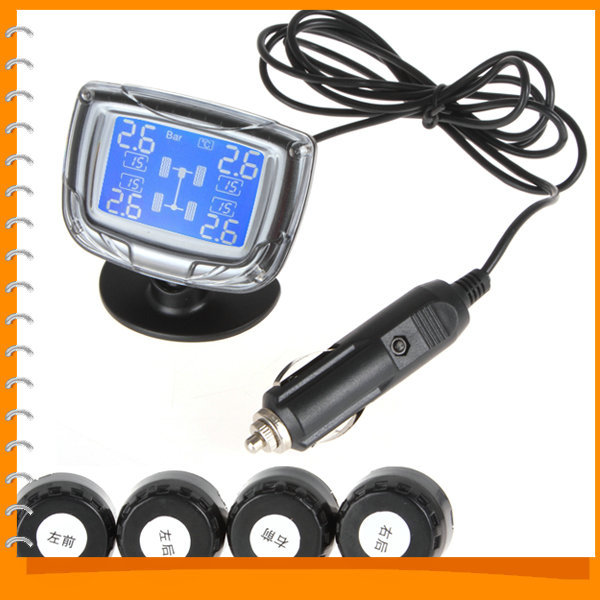

SALE! InChange InCTPMS-EXT01 TPMS Tire Pressure Monitor System with 4 Sensors & LCD Display
Adopting Germany's Infineon SP37 sensor & advanced pressure sensor technology, this kind of TPMS is with LCD display function which will provide you the data of 4 tire pressures and temperatures, and enables you to clearly know about the tire condition at a glance more. In addition, it is also with durable sensor batteries whose fespan can up to 3 years or above. Main Feature:- With LCD display function which will exhibit the data of 4 tire pressures and temperatures, enables you to clearly know about the tire condition at a glance
- Quick & Simple installation, 2-minutes quick installation
- Adopts Germany's Infineon SP37 sensor & advanced pressure sensor technology
- Adopts the technology of driving induction, with more durable sensor batteries whose fespan can up to 3 years or above, and its battery replacement is simple
- With excellent imported components, ensure professional quaty
Specifications:>
Brand: InChange> Mode: InCTPMS-EXT01> Function: Tire Pressure Monitor System> Features:- With LCD display function which will exhibit the data of 4 tire pressures and temperatures, enables you to clearly know about the tire condition at a glance
- Quick & Simple installation, 2-minutes quick installation
- Adopts Germany's Infineon SP37 sensor & advanced pressure sensor technology
- Adopts the technology of driving induction, with more durable sensor batteries whose fespan can up to 3 years or above, and its battery replacement is simple
- With excellent imported components, ensure professional quaty > Working Principle:
- Each tire is installed with a high sensitivity sensor transmitter, the data of real-time tire pressure and temperature are able to be transmitted to the display wirelessly.
- With audio-visual alarm prompt function, enables your to quickly know what has happened, such as tire air leakage, too high tire pressure, abnormal tire temperature. > Sensor Parameter:
- Working Frequency: 433.92MHz
- Working Voltage: 2.0 ~ 3.6V
- Working Current: < 1uA (Static Current) / < 10mA (Emission Current)
- Working Temperature: - 40 ~ + 125 degrees Celcius
- Accuracy: Accuracy: + / - 1 degrees Celcius (Temperature); + / - 0.1 Bar(Pressure) > Display Parameter:
- Working Frequency: 433.92 MHz
- Working Voltage: 9 ~ 15 V
- Working Current: < 20mA (Static Current) / < 100mA (Emission Current)
- Working Temperature: - 20 ~ + 70 degrees Celcius > Conversion of Pneumatic Unit : 1 bar = 100 kpa = 14.5 Psi = 1.02 kgf/cm > Display Size: 49 x 30mm > Monitor Dimensions(L x W x H): 75 x 40 x 65mm> Package Dimensions(L x W x H): 240 x 200 x 70mm> Monitor Weight: 98g>
Package Weight: 311g> Notes:
- Products are well matched in the factory, so do not need to worry about the matching problems except the sensor is damaged or lost.
- In standby mode, press the SET key 5 times in a row, after hearing the sound of "bi", it is in the state of tire matching, "-- --"
- Following the icon guide, short press the SET key to select the tire place you need to match with.
- Then mount the sensor on the corresponding tire, after receiving the signal, the "-- --" state will turn to "on" state, that means successfully received the signal, then long press the SET key for 3 seconds to save the new sensor ID and exit.
- If you do not long press the SET key, it will not save the new ID, and will automatically withdraw from the matching procedure after 3 minutes. > Approved: CE / FCC> After Sales Service: 1 Year Warranty> EPC_CEC_761>
Accessories:>
1 x Monitor > 4 x Sensors > 4 x Screws > 1 x Screw Tool > 1 x User Manual - Chinese Version >Product Description
Packaging Details Unit
Type: set
Package Weight: 0.690kg (1.52lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
