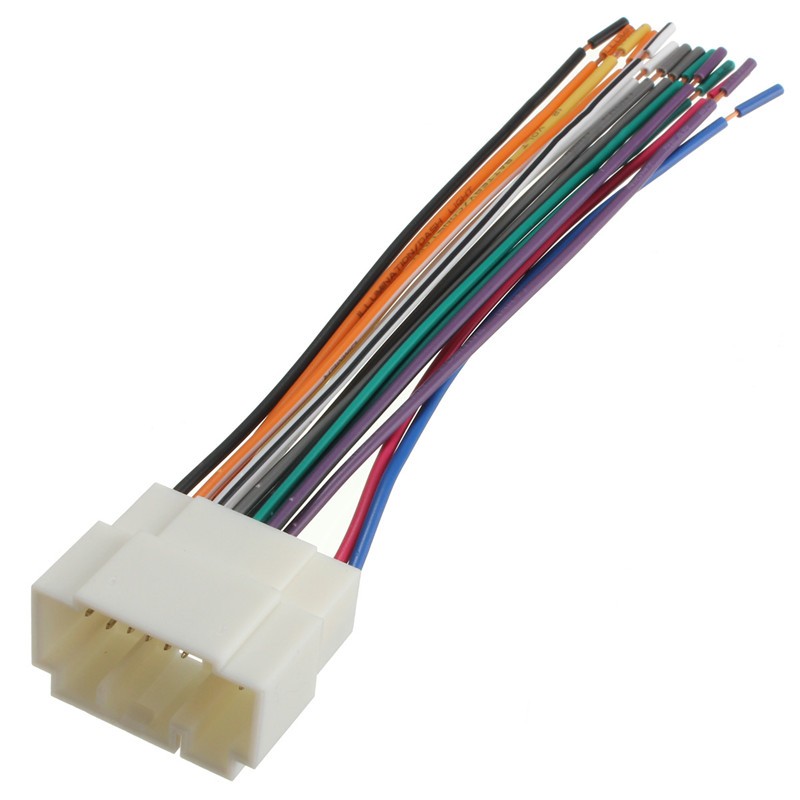

  The Scosche HA08B STANDARD car stereo wiring harness plugs into your Factory wiring for the installation of an aftermarket radio. This harness can also be used in conjunction with a reverse harness to add XM, Sirius, or a FM Modulated accessory without cutting factory wiring. This harness is EIA color coded the same as most aftermarket radios.

Illumination Note:
1.If Your Radio Does Not Contain A "Dimmer" or "Illumination" Wire, Then The Orange "Illumination / Dimmer" Wire In This Harness Will Not Be Used.
2.Some functions ke Steering Wheel Controls, speed sense, ext. may not be supported.

This Harness Fits the Following Vehicles:
For ACURA:
2001 - 2003 for CL
1999 for CL
2001 - 2006 for MDX
2001 - 2005 for NSX
1999 - 2004 for RL
2002 - 2006 for RSX
1999 - 2008 for TL
2004 - 2008 for TSX

For Honda:
2003 - 2007 for Accord (Non EX Models)
1998 - 2002 for Accord EX / LX / DX
2001 - 2005 for Civic Sedan
2002 - 2005 for Civic SI Hatchback
1999 - 2000 for Civic
1999 - 2006 for CRV
2003 - 2012 for Element
2001 - 2006 for Insight
1999 - 2007 for forr for Odyssey
2003 - 2008 for Pilot
1999 - 2001 for Prelude
2006 - 2008 for Ridgene
2000 - 2009 for S2000

For SUZUKI:
2002-2007 for Aerio
2003-2005 for Grand for Vitara
2007-2009 for SX4
2003-2006 for XL7
2010-2012 for KIZASHI Non Premium Sound Only

Wire Color Codes:
The color codes used on this car stereo connector harness conform to the E.I.A (Electronics Industry Association) standard. Depending on the manufacturer these colors may differ from the wiring codes found on your stereo. Always refer to your stereo owners manual for specific wiring details before making any connections.

EIA Color Code Connections:
Yellow - 12V Battery / Constant
Red - 12V Ignition / Switched
Black - Chassis Ground
Black / White - Factory Ampfier Ground
Blue - Power Antenna / Factory Ampfier Remote Turn On
Blue / White - Factory Ampfier Remote Turn On
Orange - Dash Light Dimmer / Illumination
Orange / White - Dash Light Dimmer / Illumination
Orange / Black - Dash Light Dimmer Ground / Illumination Ground
Brown - Mute / Not Used
White - Left Front Speaker (+)
White / Black - Left Front Speaker (-)
Gray - Right Front Speaker (+)
Gray / Black - Right Front Speaker (-)
Green - Left Rear Speaker (+)
Green / Black - Left Rear Speaker (-)
Purple - Right Rear Speaker (+)
Purple / Black - Right Rear Speaker (-)

RCA Color Codes:
White RCA - Left Front Speaker
Gray RCA - Right Front Speaker
Green RCA - Left Rear Speaker
Purple RCA - Right Rear Speaker
Red / White combinations
Red - Right input
White - Left input

Video:
Yellow RCA - Video

Additional Notes:
1.Cap and insulate all unused wires individually to prevent short circuits.
2.This wiring harness may not include all wire colors sted above.
3.Not For Use On "Factory Ampfied" Sound Systems.

Package included:
1x  Wiring Harness












Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.053kg (0.12lb.)
Package Size: 18cm x 4cm x 2cm (7.09in x 1.57in x 0.79in)
