Item specifics

Brand Name: ePathChina Sensor: CCD Special Features: Vandal-proof Connectivity: Closed System/CCTV Wired Supported Operating Systems: Windows XP,Windows Vista,Windows 7
Type: Video Camera High Definition: 480P(SD) Style: Dome Camera
Model Number: HH432MC(PAL & NTSC) Lens (mm): - Warranty: 1 Year Place of Origin: Guangdong, China (Mainland) Power System: : PAL / NTSC CCD: : RJ2421 / RJ2411 Pick Up Element: : Color 1/4 CCD

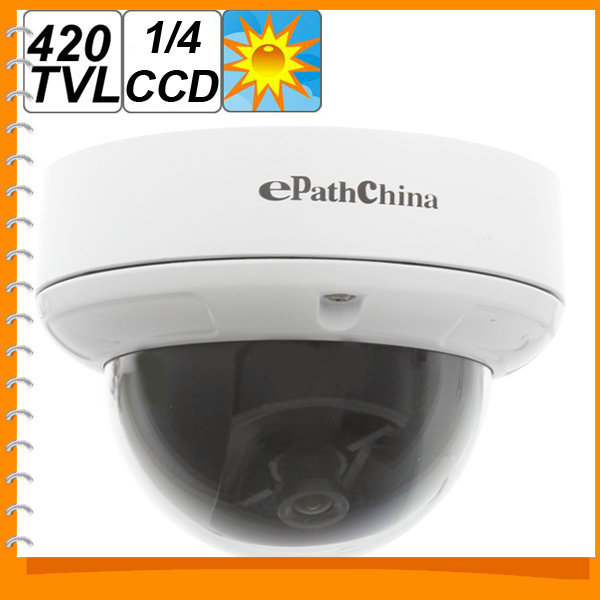

420 TVL Color 1/4 CCD Sensor 3.6mm Lens Vandal-Proof HD Dome Camera

Adopting the latest technique of color 1/4 CCD sensor and driver, this HD dome camera can work very stably. Due to the Built-in auto gain control (AGC) circuit and built-in auto electronic shutter(AES), it can not only capture HD color picture even though in low Lux condition, but can also operate with a 1/100000s AES speed. Furthermore, its installation is very convenient, what a good choice for you to apply it to your CCTV system! Features:
- Adopt color 1/4 CCD sensor
- High definition and stabity, strong anti-jamming, rich and real color
- Built-in auto gain control(AGC) circuit, abity of capturing HD pictures in low Lux condition
- Built-in auto electronic shutter(AES) function, 1/100000s high speed of color camera's AES

Specifications:>

Features:
- Adopt color 1/4 CCD sensor
- High definition and stabity, strong anti-jamming, rich and real color
- Built-in auto gain control(AGC) circuit, abity of capturing HD pictures in low Lux condition
- Built-in auto electronic shutter(AES) function, 1/100000s high speed of color camera's AES> Power System: PAL / NTSC> Model: HH432MC(PAL & NTSC)> CCD: RJ2421 / RJ2411> DSP: SHARP / 36B15 > CCD Pixel(H x V): 512 x 582 / 512 x 492> Horizontal Resolution: 420 TV Lines> Pick Up Element: Color 1/4 CCD> Effective Picture Element(H x V): 510 x 492(NTSC), 500 x 582(PAL)> S/N Ratio: More than 48dB> Clock Frequency(MHZ): 28.636(NTSC) / 28.375(PAL)> Scanning System: 2:1 interlace > Synchronous System: Internal, Negative sync. > Minimum Illumination: 0.1 Lux> Auto Electronic Shutter: 1 / 60s ~ 1 / 100000s(NTSC), 1 / 50s ~ 1 / 100000s(PAL)> Gamma Characteristic: 0.45> Video Out: 1 Vpp composite signal(75 Ohms)> Power Input: About DC 12V> Power Dissipation: 60 mA> Storage Temperature: -10 ~ +60 centigrade> Operating Temperature: -10 ~ +45 centigrade> Operating Humidity: Less than 85% RH> Product Dimensions(W x H): 108 x 95 mm> Package Dimensions(L x W x H): 125 x 125 x 117 mm> Product Weight: 330g>
Package Weight: 413g> Notes:
- Do not make the camera face directly to the sun or bright object.
- Do not install the camera near by the radiator or heater.
- Note to mount the Anti-thunder device or put off the power supply plug and cable when using it in the thunderbolt condition.> Approved: CE / FCC> After Sales Service: 1 Year Warranty> EPC_CCT_035>

Accessories:>

3 x Screws & 3 x Nuts> 1 x Metal Bar> 1 x User Manual>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.440kg (0.97lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
