Item specifics
Technology: Infrared
Brand Name: ESCAM IR Distance(m): - Power Supply(V): - Sensor: CMOS Ships From: Guangdong, China ( Mainland ) Dimensions (L x W x D)(mm): (D x H): 85 x 80mm Special Features: Waterproof / Weatherproof Viewing Angle (Degree): 70(114 / 46)degrees Connectivity: Closed System/CCTV Wired Supported Mobile Systems: Android Supported Operating Systems: Windows XP,Windows 7
Type: Video Camera Lens (mm): 3.6mm Minimum Illumination(Lux): Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) High Definition: 720P(HD) Style: Dome Camera
Model Number: QD520 Place of Origin: Guangdong, China ( Mainland ) After Sales Service: 1 Year Warranty

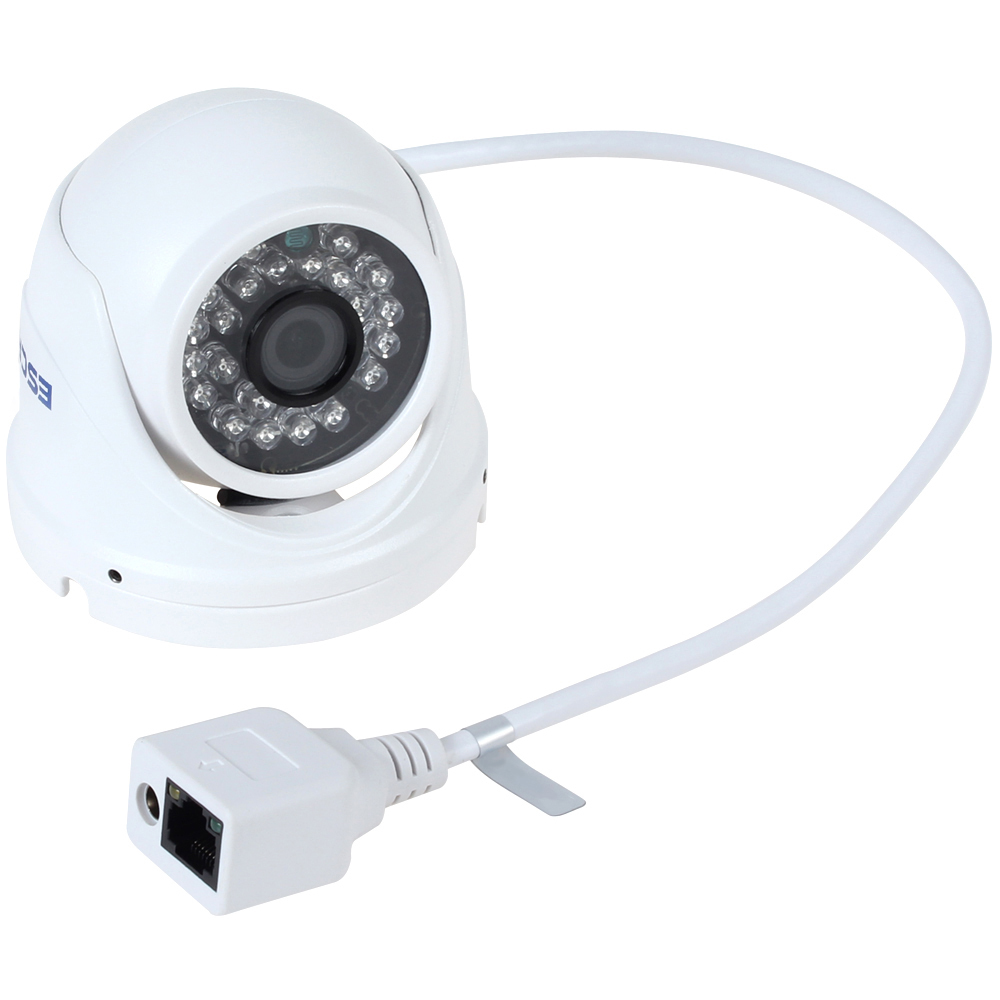

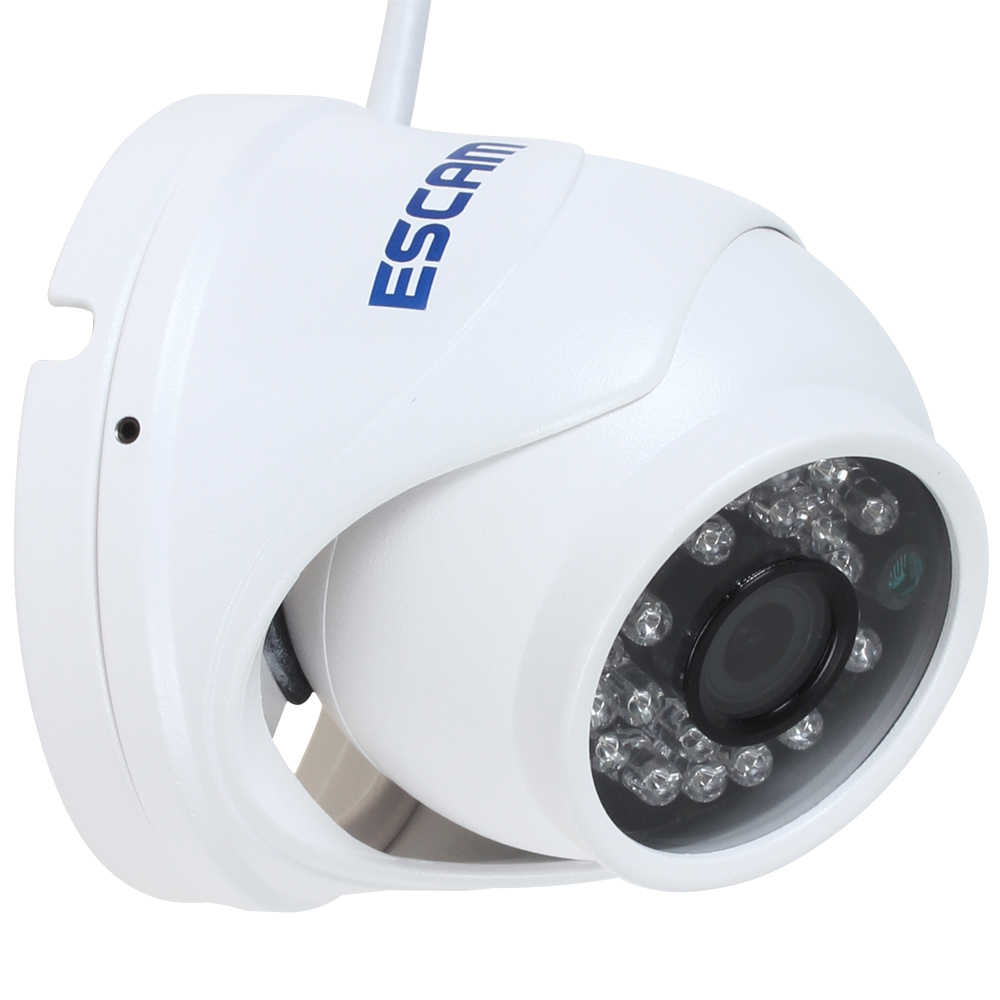

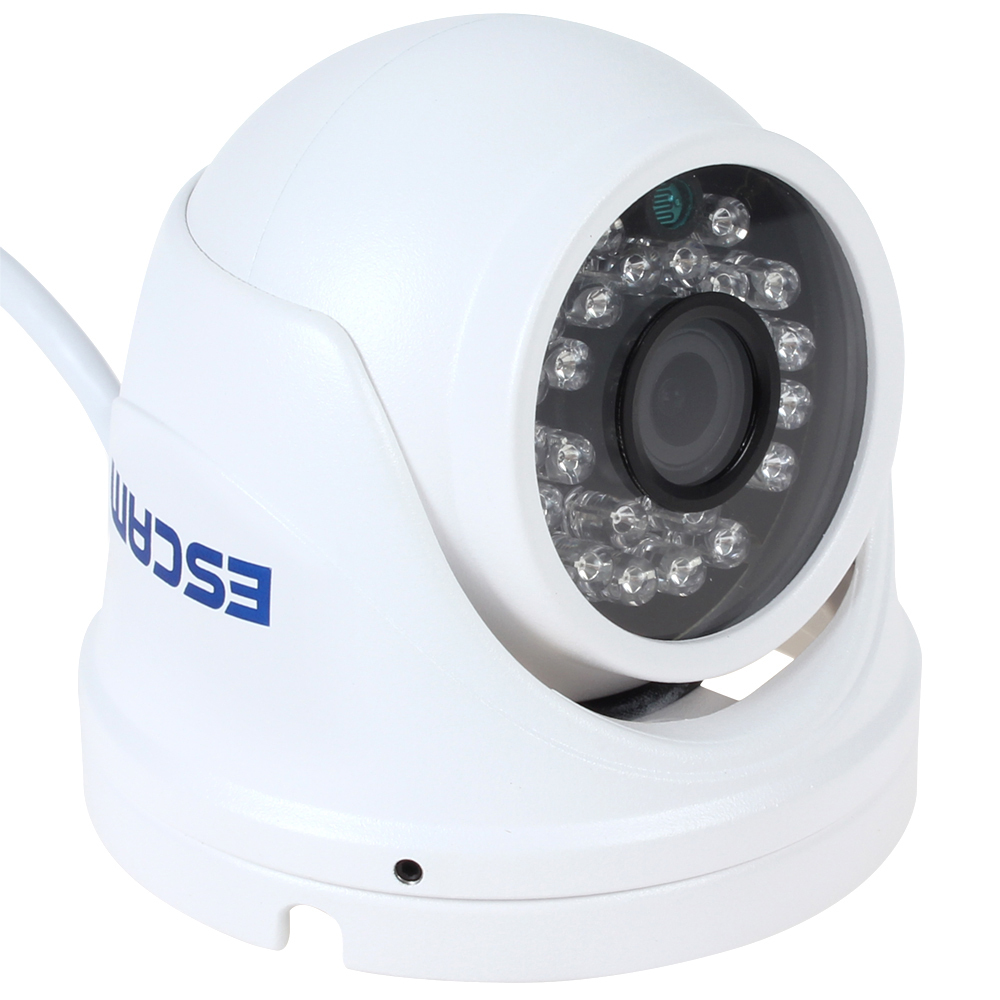

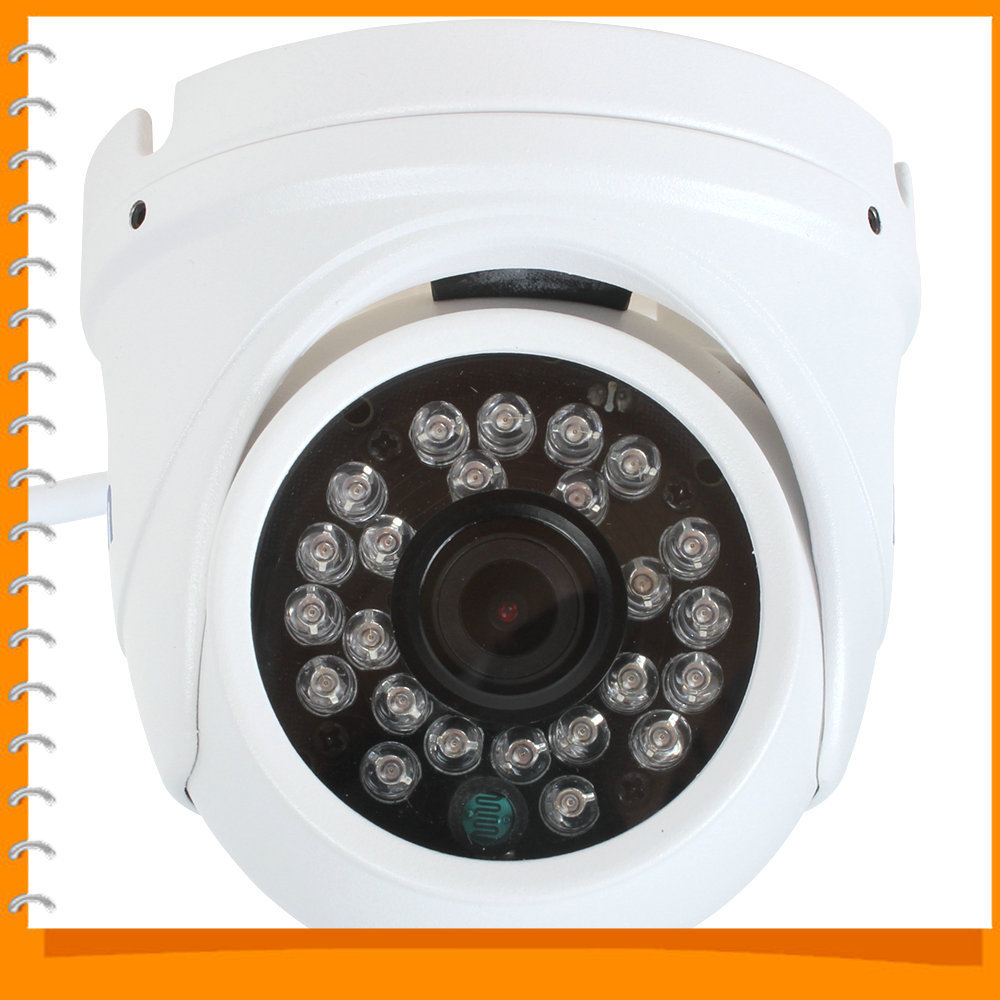

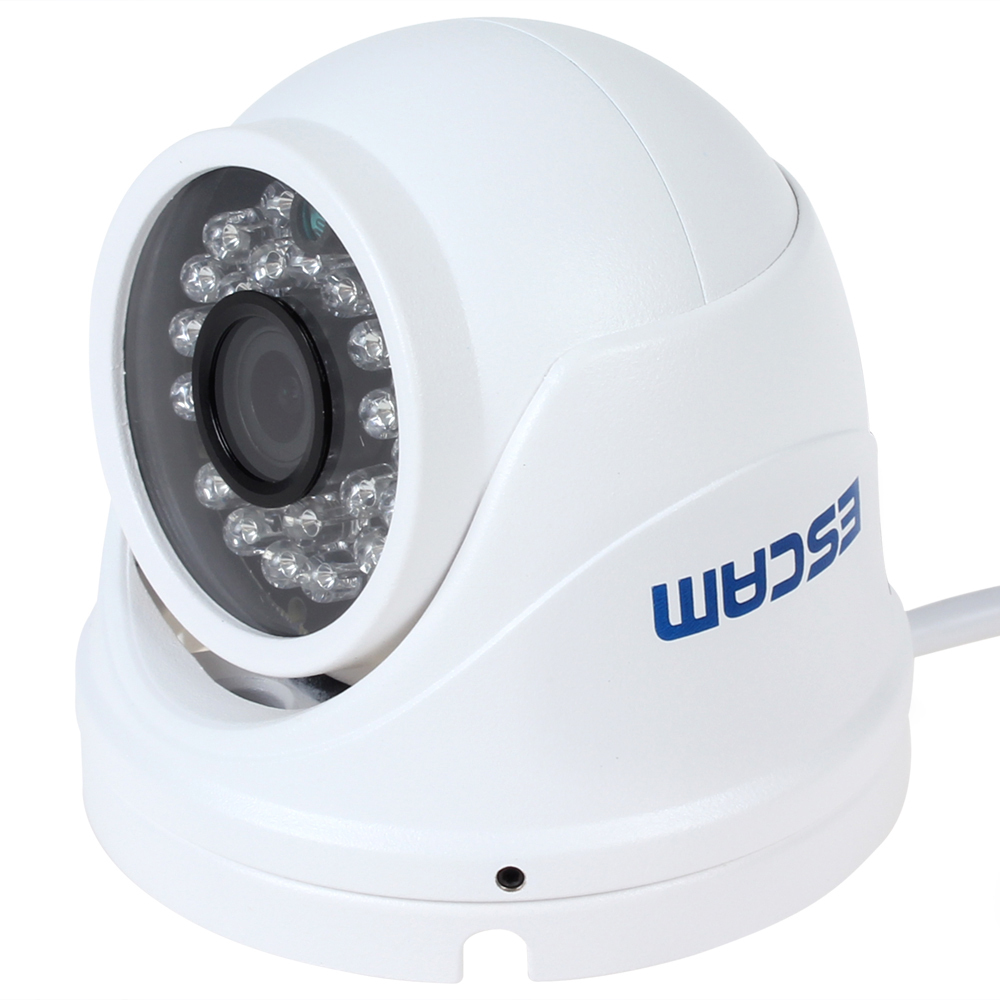

ESCAM QD520 H.264 HD720P 3.6mm 1/4 CMOS Dual Stream IR Dome Camera Support P2P / Cloud IP

This camera comes with 3.6mm fixed lens, 24IR LEDs, 1/4 CMOS sensor, 720P high definition. It has good working performance with IR range 10m keeping your property safe at night. It supports dual stream, main stream for local view with high image quaty, sub stream for remote transmission, overcoming bandwidth mitation. Main Features:- Adopt H.264 compression algorithm
- Megapixel resolution, high definition video
- Support dual stream
- Onvif compant
- Support P2P, Cloud
- Android / iPhone smart phone APP
- Compact design, high reabity
- Web viewer / CMS multiple network monitoring
- Waterproof

Specifications:>

Features:
- Adopt H.264 compression algorithm
- Megapixel resolution, high definition video
- Support dual stream
- Onvif compant
- Support P2P, Cloud
- Android / iPhone smart phone APP
- Compact design, high reabity
- Web viewer / CMS multiple network monitoring
- Waterproof> Model: QD520> Image Sensor: 1/4 1Megapixel progressive scan CMOS> Effective Pixels: 1280(H)x720(V)> Scanning System: Progressive> Electronic Shutter Speed: Auto/Manual 1/3(4)~1/10000> Min. Illumination: Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)> S/N Ratio: > 50dB> Max. IR LEDs Length: 10m> Day/Night: Auto(ICR) / Color / B/W> Backght Compensation: BLC / HLC / DWDR> White Balance: Auto/Manual> Gain Control: Auto/Manual> Noise Reduction: 3D> Privacy Masking: Up to 4 areas> Lens:
- Focal Length: 3.6mm
- Max Aperture: F1.8(F2.0/F1.8)
- Focus Control: Manual
- Angle of View: H: 70(114 / 46)degrees
- Lens
Type: Fixed lens
- Mount
Type: Board-in Type> Video:
- Compression: H.264 / MJPEG
- Resolution: 720P(1280 x 720) / D1(704 x 576/704 x 480) / CIF(352 x 288/352 x 240)
- Frame Rate: Main Stream: 720P(1 ~ 25/30fps) / Sub Stream: D1/CIF(1 ~ 25/30fps)> Bit Rate: H.264: 16K ~ 8192Kbps> Network:
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
- ONVIF: ONVIF Profile S
- Max. User Access: 10 users
- Smart Phone: iPhone, iPad, Android, Windows Phone
- P2P: iPhone, Android Mobile App> Power Supply: DC12V 1A> Power Consumption: <4W> Working Environment: -30~ +60, < 95%RH> Dimensions(D x H): 85 x 80mm> Weight: 256g> Package Dimensions(L x W x H): 120 x 120 x 95mm>
Package Weight: 337g> After Sales Service: 1 Year Warranty> EPC_SUR_117>

Package Include:>

1 x Camera> 1 x Driver disk> 1 x Installation accessories> 1 x Charger> 1 x Manual>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.510kg (1.12lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
