Item specifics

Type: Insulation Sleeving







Description:
Top Quaty Polyolefin Heat Shrink Sleeving for General Purpose Use.
A full range of 5 colors in the most popular small sizes.
Suitable for electrical insulation, wire bundng, colour coding, mechanical protecting, wire/cable joints and repairs etc.
Good electrical, mechanical and chemical performance.
Ideal for Hobbyists and Model Makers, Electrical, Electronic, Automotive and General Purpose uses.

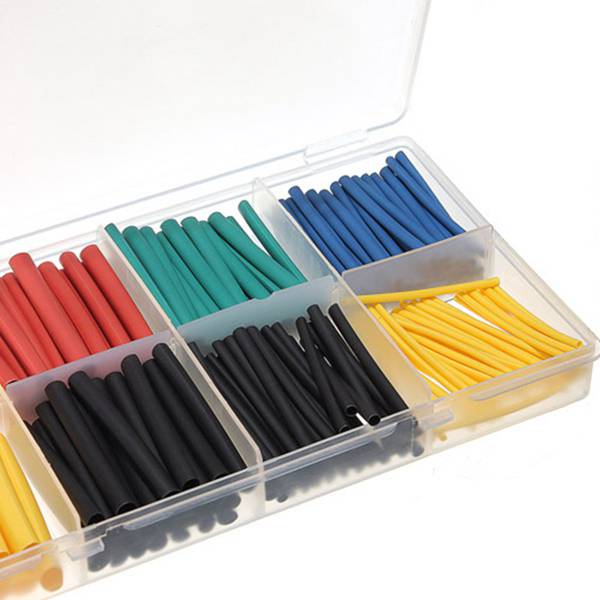

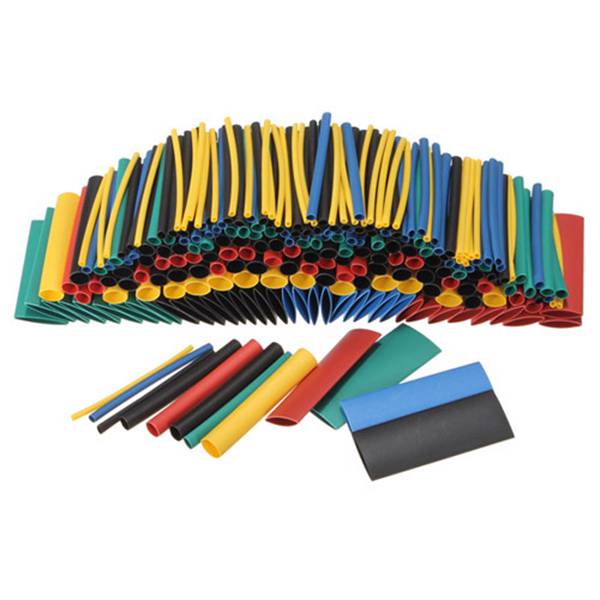

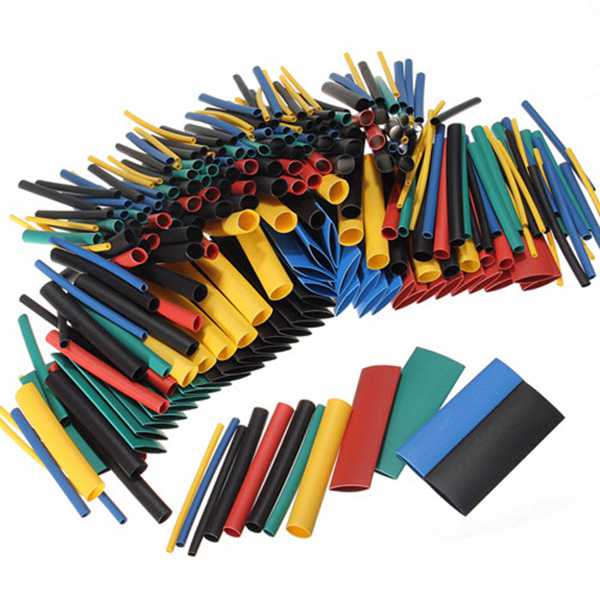

  The Ultimate Multi-Color Kit
Heat Shrink Tubing
280 pieces total, each 70 mm long
8 sizes in 5 colors

Feature:
Supped internal diameter: 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 mm
Fully shrunk internal diameter: 0.5, 1.0,1.5, 2.0, 2.5 3.0, 4.0, 5.0 mm
Color:5 colors, Red, Black, Green,Yellow, Blue
Totel Length: 54 metres
Shrinkage Ratio: 2:1 (will shrink to 1/2 its supped diameter)
Material: Polyolefin
Minimum Shrinkage Temp:+70°C
Full Shrinkage Temp: +110°C maximum
Operating Temperature: -55°C to +125°C
Tensile strength: 10.4 Mpa
Dielectric strength: 20 kv/mm
Manufacture specification: ISO9001
Flammabity: Flame Retardant (except Clear)
Approvals: UL Approved
Supped format (round or flat): Product is supped round
Cutting method: Scissors or knife
                                               Kit Contents

                                     Each piece 45 mm long
Supped
internal
diameter
(minimum)
mm Fully shrunk
internal
diameter
(maximum) mm Color Pieces per
kit (each
45 mm long) 1 0.5 Yellow 40 2 1 Black 40 2 1 Blue 40 3 1.5 Green 30 4 2 Red 25 4 2 Black 25 5 2.5 Black 20 6 3 Yellow 20 8 4 Red 10 10 5 Blue 10 10 5 Green 10 10 5 Black 10
Package included:
(8 size, each size respectively has 40, 80, 30, 50, 20, 20, 10, 30 pieces, Altogether has 280pcs)

35 x Heat Shrink Tubing (Red)
95 x Heat Shrink Tubing (Black)
60 x Heat Shrink Tubing (Yellow)
40 x Heat Shrink Tubing (Green)
50 x Heat Shrink Tubing (Blue)
