Item specifics
Brand Name: -
Model Number: - Warranty: 1 Year Place of Origin: Guangdong, China (Mainland) Video Format: Support 1080P/1080i/720P/480P /576i Output Video: SDI Input Power: DC 5V Power Consumption: 2.5W

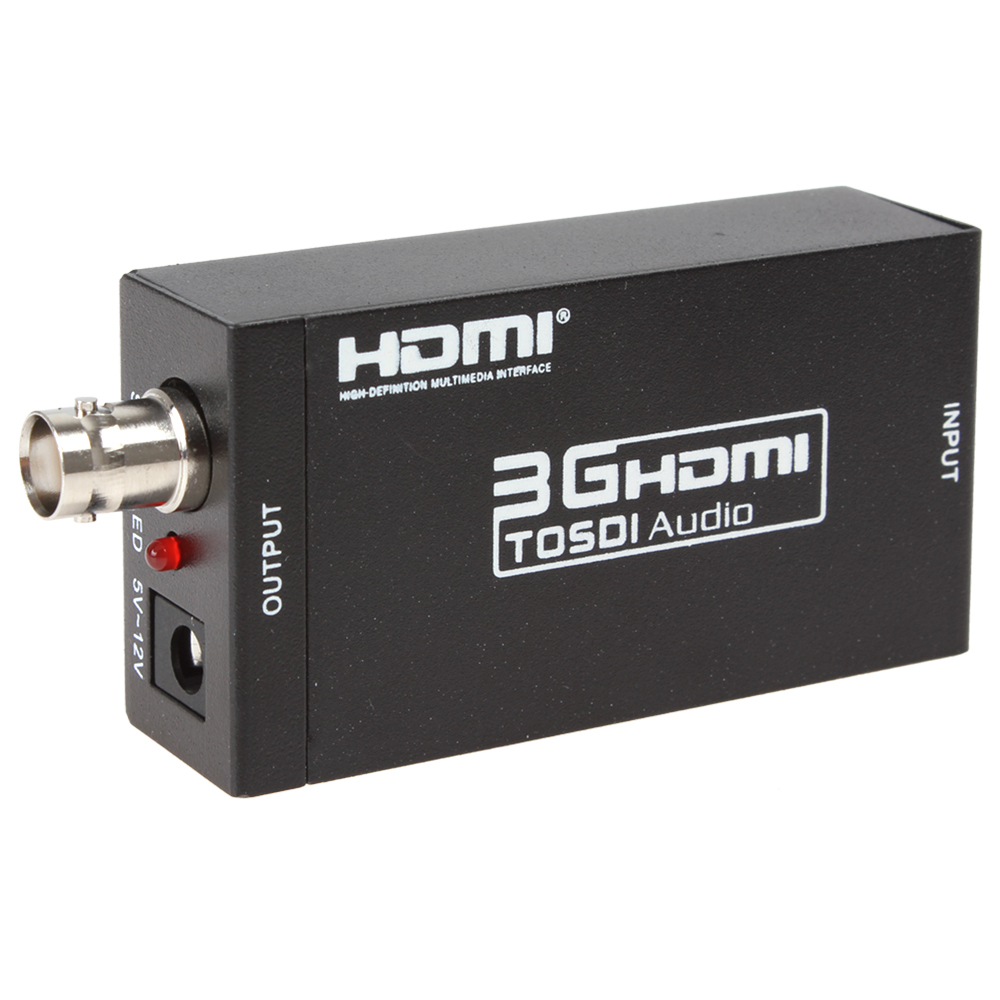

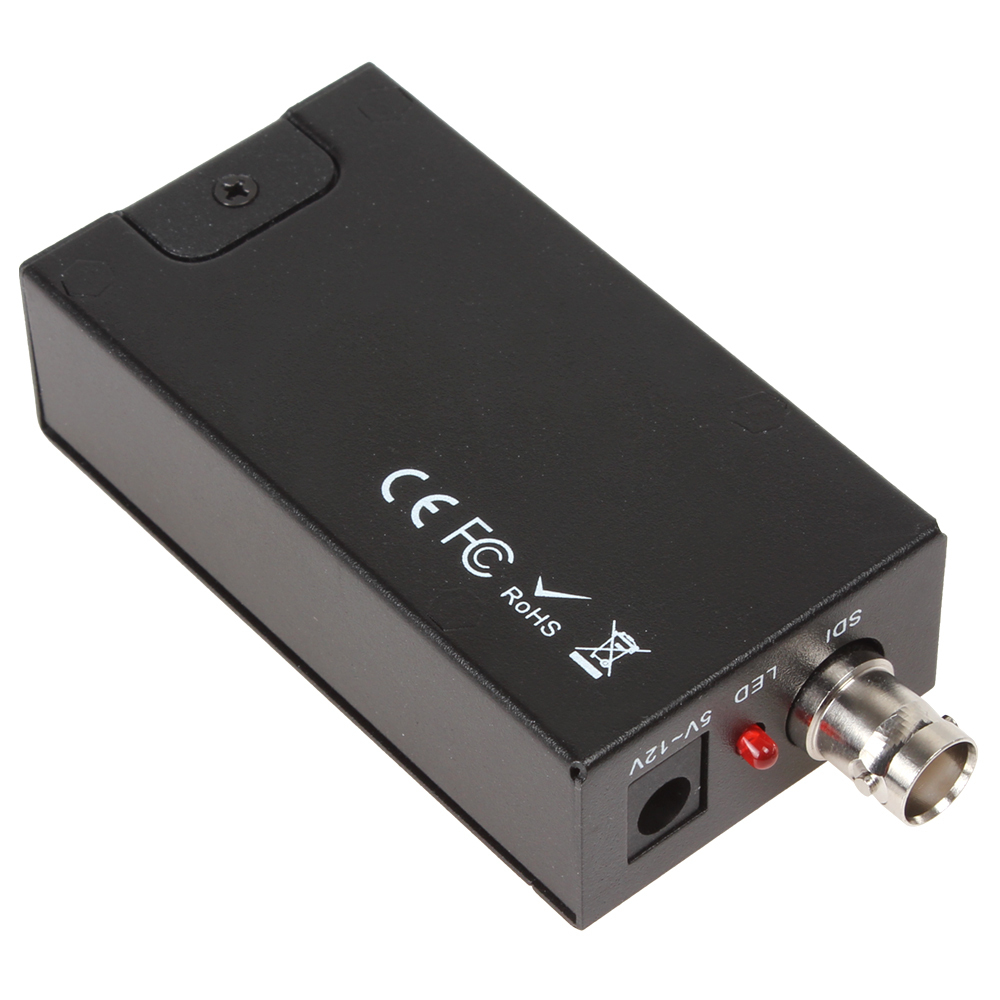

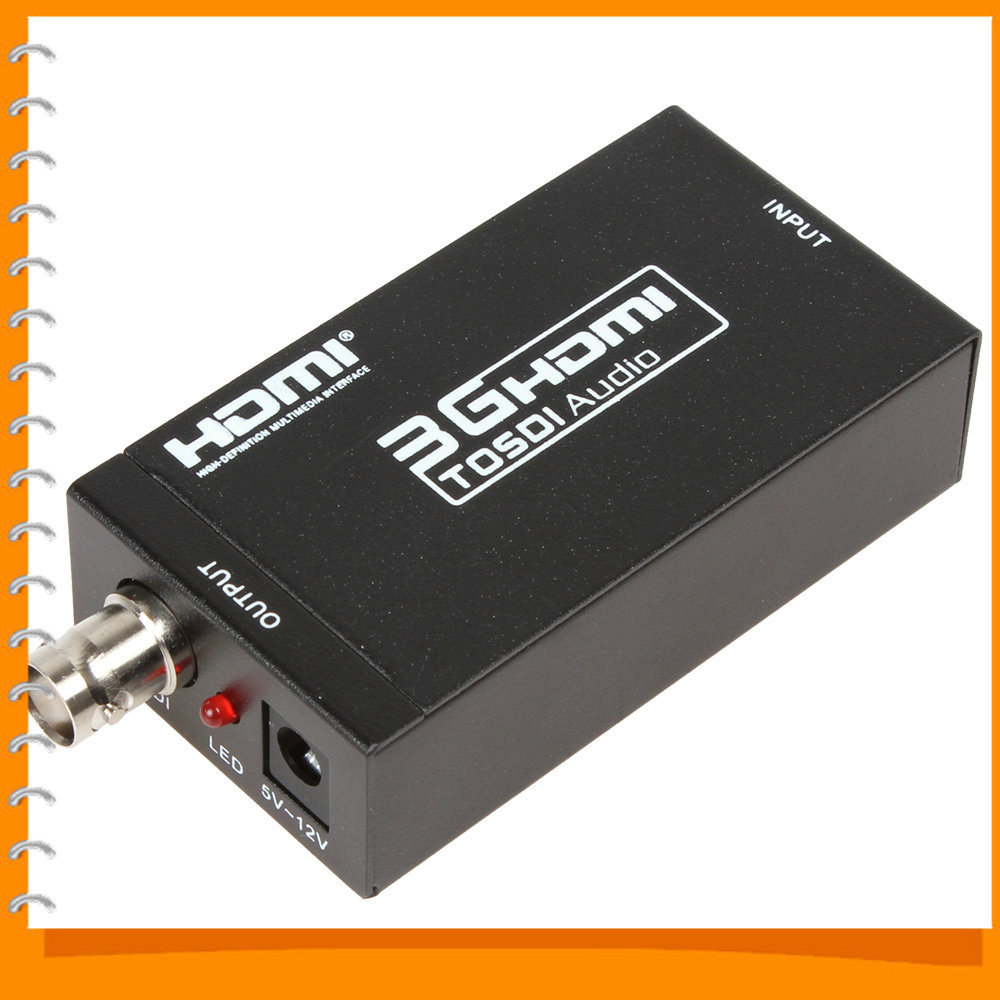

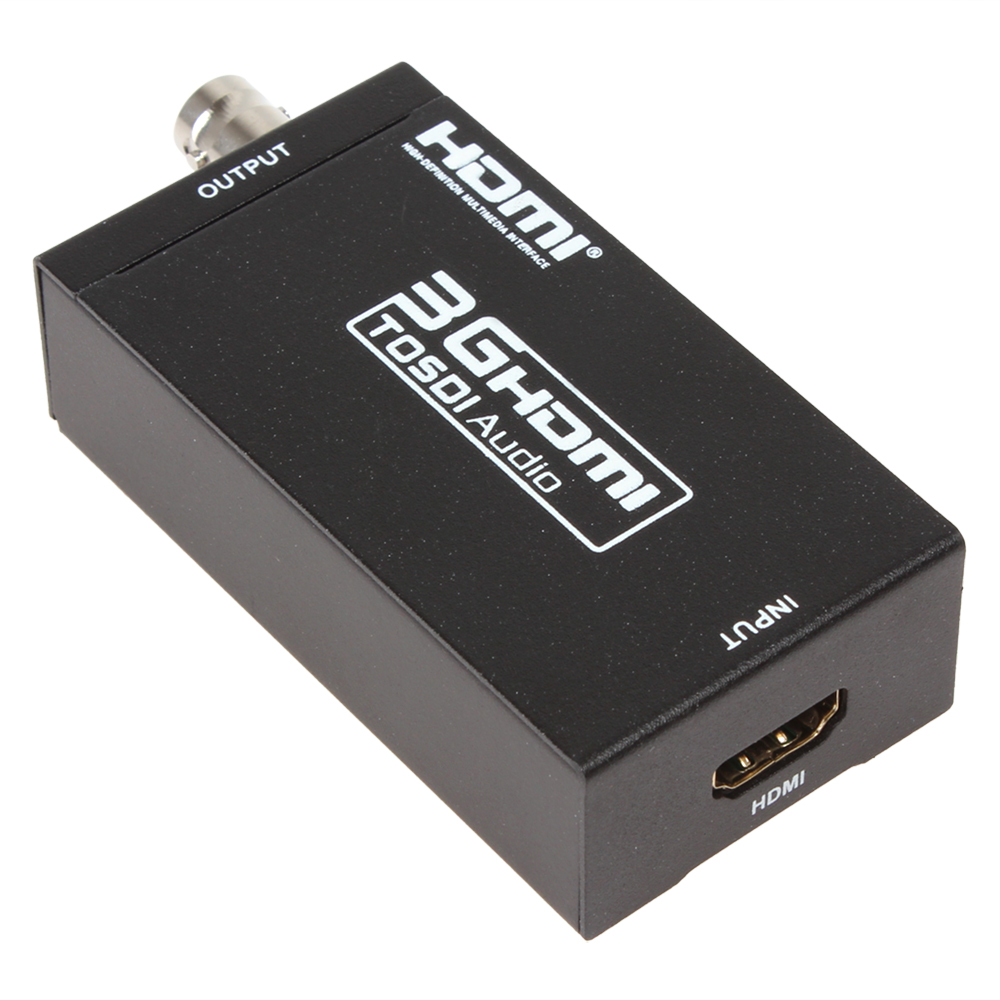

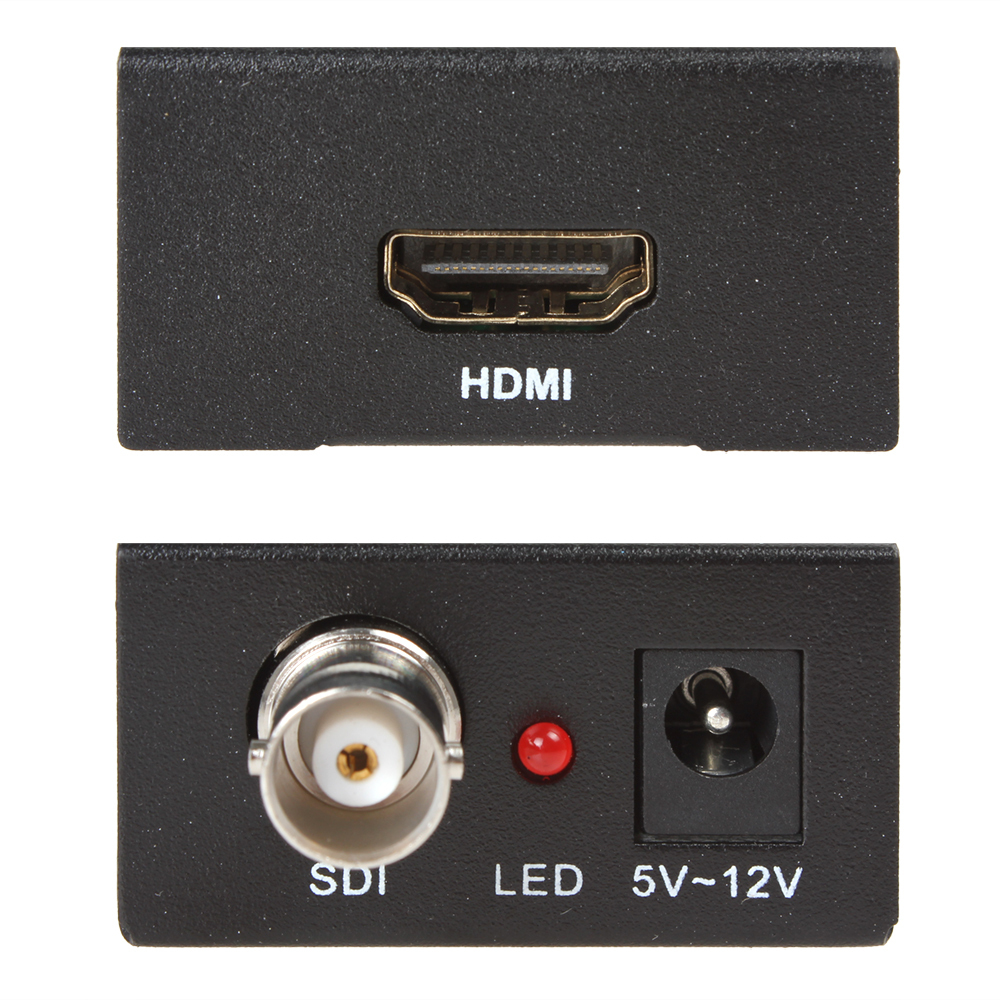

The mini HDMI to SDI converter allows HDMI signals to be shown on SDI display while ensuring high bit rates to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. Main Features: - Maximum input resolution up to 1080p 60 Hz
- Support HDMI inputs and SDI outputs
- Adaptive HDMI inputs resolution
- Embedded audio and image synchronization output
- HDMI1.4 standards, HDCP1.2 agreement, support the CEC
- Built-in ESD protection circuit, can effectively prevent electrostatic damage
- Installation easy and convenient
- Maximum input resolution up to 1080p 60 Hz
- Support HDMI inputs and SDI outputs
- Adaptive HDMI inputs resolution
- Embedded audio and image synchronization output
- HDMI1.4 standards, HDCP1.2 agreement, support the CEC
- Built-in ESD protection circuit, can effectively prevent electrostatic damage
- Installation easy and convenient> Input Video Signal: 0.5-1.0 volts p-p> Video Format: Support 1080P/1080i/720P/480P /576i> Output Video: SDI> Input Audio: Support 32KHz, 44.1KHz, 48KHz, 88KHz, 96KHz, 192KHz> Input Power: DC 5V> Operating Temperature: -5~35 centigrade degree> Relative Humidity: 5~90% RH (Non-condensing)> SDI Maximum Output Distance:
- 80 meters (3G-SDI)
- 160 meters (HD-SDI)
- 260 meters (SD-SDI)> Power Consumption: 2.5W> Product Dimension: 80 x 42 x 23mm> Product Weight: 104g>
Package Weight: 261g> Package Size (L x W x H): 215 x 150 x 55mm> After Sales Service: 1 Year Warranty> EPC_HMP_574>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.290kg (0.64lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
Brand Name: -
Model Number: - Warranty: 1 Year Place of Origin: Guangdong, China (Mainland) Video Format: Support 1080P/1080i/720P/480P /576i Output Video: SDI Input Power: DC 5V Power Consumption: 2.5W
The mini HDMI to SDI converter allows HDMI signals to be shown on SDI display while ensuring high bit rates to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. Main Features: - Maximum input resolution up to 1080p 60 Hz
- Support HDMI inputs and SDI outputs
- Adaptive HDMI inputs resolution
- Embedded audio and image synchronization output
- HDMI1.4 standards, HDCP1.2 agreement, support the CEC
- Built-in ESD protection circuit, can effectively prevent electrostatic damage
- Installation easy and convenient
Specifications:>
Features:- Maximum input resolution up to 1080p 60 Hz
- Support HDMI inputs and SDI outputs
- Adaptive HDMI inputs resolution
- Embedded audio and image synchronization output
- HDMI1.4 standards, HDCP1.2 agreement, support the CEC
- Built-in ESD protection circuit, can effectively prevent electrostatic damage
- Installation easy and convenient> Input Video Signal: 0.5-1.0 volts p-p> Video Format: Support 1080P/1080i/720P/480P /576i> Output Video: SDI> Input Audio: Support 32KHz, 44.1KHz, 48KHz, 88KHz, 96KHz, 192KHz> Input Power: DC 5V> Operating Temperature: -5~35 centigrade degree> Relative Humidity: 5~90% RH (Non-condensing)> SDI Maximum Output Distance:
- 80 meters (3G-SDI)
- 160 meters (HD-SDI)
- 260 meters (SD-SDI)> Power Consumption: 2.5W> Product Dimension: 80 x 42 x 23mm> Product Weight: 104g>
Package Weight: 261g> Package Size (L x W x H): 215 x 150 x 55mm> After Sales Service: 1 Year Warranty> EPC_HMP_574>
Package Include:>
1 x HDMI-SDI Converter> 1 x DC 5V/2A Power Supply Adapter> 1 x User Manual>Product Description
