Brand Name: OEM









Description:

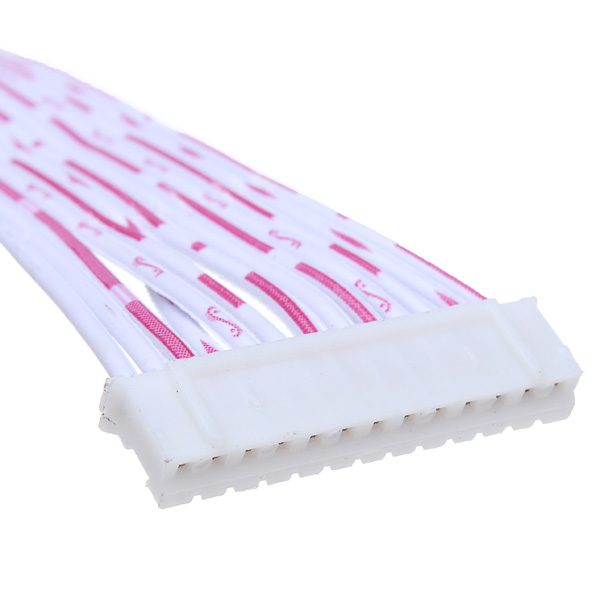

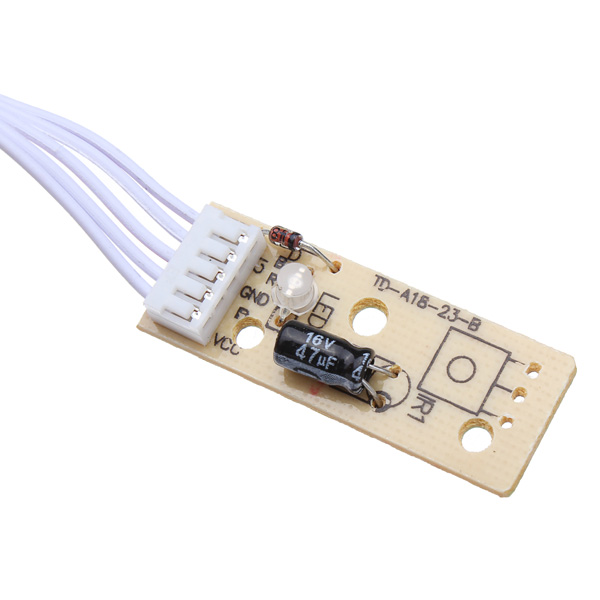

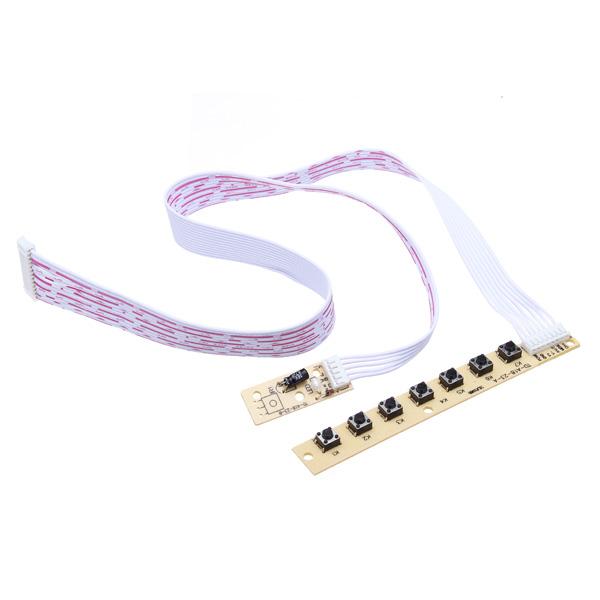

7 Key Keypad Board, can be directly used in V29 V59 TV driver board , with interface, can be welding infrared receiving head

PIN Symbol Description 1 + 5 V + 5 V POWER SUPPLY FOR IR 2 IR - IN IR INPUT 3 GND GROUND 4 K0 POWER 5 LEDR RED LED 6 LEDG GREEN LED 7 GND GROUND 8 K1 MANU 9 K2 INPUT SOUR 10 K3 VOL+ 11 K4 VOL- 12 K5 CH+ 13 K6 CH- 14 K7 RESERVED
Package included:

1 x 7 Keys Keypad Board










Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.098kg (0.22lb.)
Package Size: 20cm x 15cm x 15cm (7.87in x 5.91in x 5.91in)
