Item specifics
Products Status: Stock
Type: Power Cable Package: No




100% Brand new and high quaty
Description:
This is a 1-ch network signal surge protecting device designed according to the standard of B/T18802.21-2004/IEC61643-21:2000;
The device works with 5V rated continuous operational voltage, with the miting voltage under 8.8V.
It features multi-level protection, large maximum discharge current, low miting voltage, quick reacting time, low inserting loss etc.
It’s adapted to the overvoltage accurate protection of the network signal ke the network switch, concentrator,
network card, computer, protecting the damage from overvoltage, switching overvoltage, ESD etc.
It’s widely used in meeting, security, office system etc.

Features:
1. Signal Protection: Ethernet Protection (Bandwidth > 100Mbps)
2.Features: Multi-level protection, large maximum discharge current, low miting voltage, quick reacting time, low inserting loss;
3. Grounding Mode: Extension Line to ground
4. Design:recognizable, aluminum shell, decate size

Specifications:

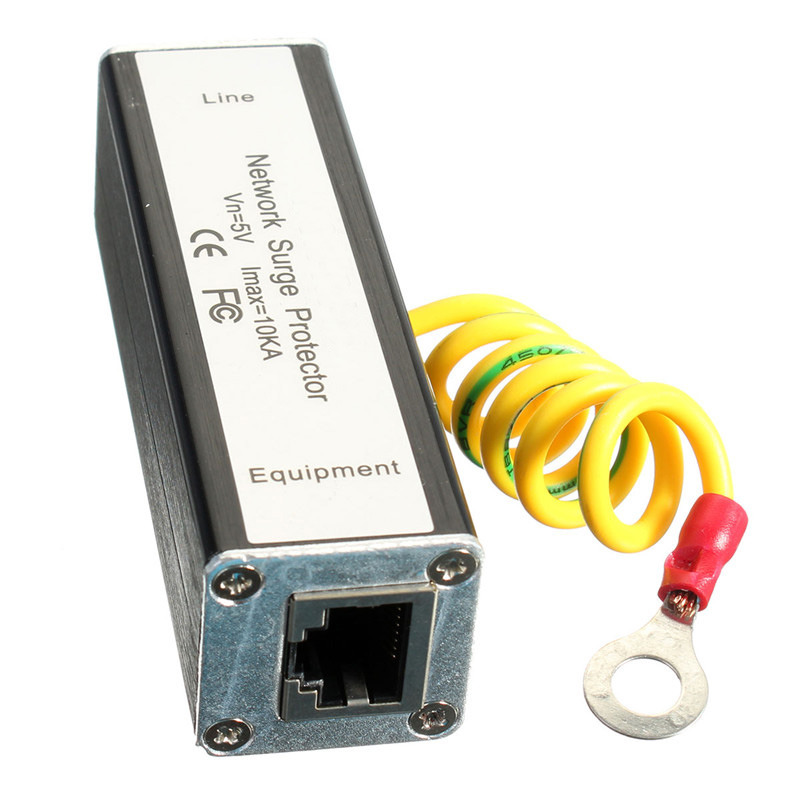

Product: Network Signal Surge Protector
Vn:5V, Imax=10KA, Ur:≤15V, Vs:≤1ns, response time:100Mbps, Ae: ≤0.5dB
Connector: RJ45
Size: 80x25x25mm (L*W*H)
