Item specifics
Item
Type: Car Monitors Placement: In-Dash Display Size: 7" Item Size: 172mm x 113mm x 32mm Resolution: 800x480 Material
Type: ABS Item Weight: 830 g Place of Origin: Guangdong, China (Mainland) Warranty: 1 Year Display Component: : Color TFT LCD System: : PAL / NTSC system(auto switch) Power Supply: : DC 12V / 24V Power: : 5W Color: : Black

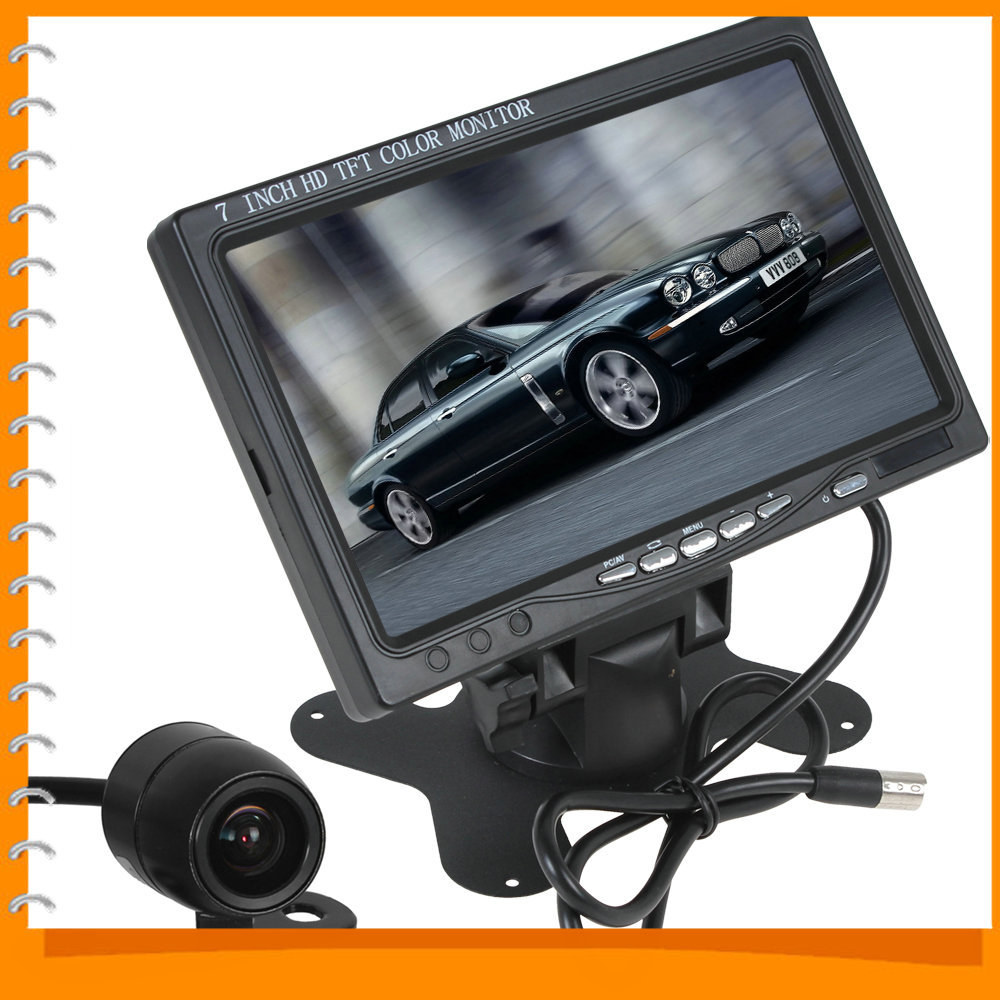

This is a 7 inch color LCD screen car rear view monitor + E306 car camera. The high sensitivity and low power consumption car camera has 120 ~ 170 degrees lens angle and the resolution is 420 TV nes. The car rear view monitor supports 2 channels video input (AV1:DVD/camera video signal, AV2: the reversing signal). Its pixel is 800 x 480 which can display clear image. It comes with HDMI, VGA interface and a full function remote control for easier operation. Widely used in buses, commercial vehicles, container trucks, trucks, engineering vehicles, fire trucks, ships, etc.   Monitor Features:
- 7 inch TFT LCD screen
- Automatic switch rear display function
- Support Chinese, Engsh, Russian, German and other languages, 9 kinds in total
- 2 way AV input
- Built-in speakers
- HDMI, VGA interface
- Equipped with a card type full function remote control   Camera Features:
- Display a reversed camera image on the monitor to dupcate the normal view seen in a rear view mirror. With the high sensitivity, you can get rid of the poor rear vision.
- Fit into most vehicle key holes, no other installation needed.
- It's a night vision camera, you can easily get the clear situation in your back.
- With the waterproof design, there is no need to concern the rainy days.
- Low power consumption and low maintenance.
- Easy to install.

Specifications:>

7 Inch Car Rear View Monitor > Features:
- 7 inch TFT LCD screen
- Automatic switch rear display function
- Support Chinese, Engsh, Russian, German and other languages, 9 kinds in total
- 2 way AV input
- Built-in speakers
- HDMI, VGA interface
- Equipped with a card type full function remote control> Connection Method: Red wire is connected to the +12V / 24V DC, black wire to the +12 / 24(GND), green wire to the reversing forced wire, AV plug to camera(AV2), AV socket to DVD VIDEO(AV1)> Function of keys:
- "V1/V2": AV1/AV2 video quick switch, press the key to switch the cycle of AV1/AV2 video picture
- "MENU": Press the key can circularly open menu
- "-": Select the down regulating parameters in the menu
- "+": Select the up regulating parameters in the menu
- "POWER": On / Off> Screen Size: 7 inches> Display Component: Color TFT LCD> LED Backght Brightness: 400 cd/m2> Screen Ratio: 16:9 / 4:3 adjustable> Pixel: 800 x 480> System: PAL / NTSC system(auto switch)> Contrast Ratio: 350: 1> Housing Material: ABS> Power Supply: DC 12V / 24V> Power: 5W> Color: Black> Working Temperature: -20C~+70C> Product Size: 172mm x 113mm x 32mm> Net Weight: 332g>
Package Size: 210mm x 145mm x 85mm>
Package Weight: 659g> E306 Camera Features> Features:
- Display a reversed camera image on the monitor to dupcate the normal view seen in a rear view mirror. With the high sensitivity, you can get rid of the poor rear vision.
- Fit into most vehicle key holes, no other installation needed.
- It's a night vision camera, you can easily get the clear situation in your back.
- With the waterproof design, there is no need to concern the rainy days.
- Low power consumption and low maintenance.
- Easy to install.> TV System: PAL / NTSC> Effective Pixel: 628 x 586 / 828 x 686> Sync System: Internal> Scanning System: 2 : 1 Interlace> Resolution: 420 TV nes> Lens Angle: 18mm / 170 degrees> Sensor Area: 5.961mm x 4.276mm> Video Output: 1.0Vp-p, 75Ohm> S / N Ratio: More than 48 db> Water-proof: IP67 - IP68> Current Consumption: No more 300mA> Power Supply: DC 12V> Operating Temperature: -20 ~ 60 degrees(RH95%Max.)> Storage Temperature: -20 ~ 60 degrees(RH95%Max.)> Other Items: Automatic white balance, Agc and BLC>
Package Weight: 171g> Package Dimensions(L x W x H): 133 x 80 x 50mm> After Sales Service: 1 Year Warranty> EPC_CMO_307>

Package Include:>

1 x Monitor> 1 x Bracket> 1 x AV Cable> 1 x Remote Control> 1 x User Manual> 1 x Car Camera> 1 x Video Cable> 1 x Power Cable> 4.3 Inch Color TFT LCD Parking Car Rear view Monitor Car Rearview Backup Monitor 4.3'' 2 Video Input for Reverse Camera DVD[SALE] 480 x 272 4.3 Inch TFT LCD Car Rear View Mirror Monitor Parking Rearview Monitor + 7 IR Lights Car Reverse Camera2.4GHz Wireless Car Monitor 7 Inch 800 x 480 Color TFT LCD Car Rear View Rearview Monitor + Wireless Backup Reverse Camera7 Inch Color TFT LCD MP5 Car Rear View Mirror Monitor Auto Vehicle Parking Rearview Monitor SD/USB FM Radio For Reverse Camera[SALE] Univeral 4.3 Inch Color TFT LCD Parking Car Rear View Mirror Monitor 4.3'' Rearview Monitor for Backup Reverse Camera7 Inch RGB Car Rearview Monitor Digital Display Car VCR Monitor + 120 Degree Wide Angle 7 IR Lights Car Rear View Reverse Camera7 Inch 800 x 480 RGB Car Rearview Monitor Digital Display Car VCR Monitor + Wireless Car Rear view Reverse Camera Night Vision[SALE] 4.3 Inch Color TFT LCD Car Rear view Monitor 4.3'' Parking Rearview Monitor with 2CH Video Input / 960H x 240V Resolution
