Item specifics
Package: Yes

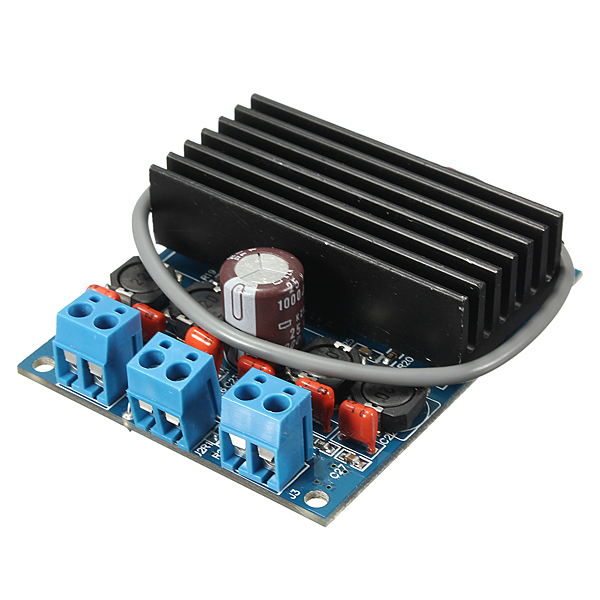

Description: Power supply: Single-voltage 10-26V for DC> Maximum power:50W*2 / 8 Ohms> Mono BTL power 100W / 4 Ohms> Size:71x60x20mm> Features: With 4 model GAIN parts.can auto work on different voltage> The use of high-speed SMT placement machine, over temperature reflow, the performance is very stable> Comes with super output short-circuit and over-temperature overload and prevent the impact of the switch machine>
Note:
            When the speaker impedance is 4 ohms, the operating voltage must be less than 18V;
            When the speaker impedance is 6 ohms, the operating voltage can not exceed 24V;
            When the speaker impedance is 8 ohms, the working voltage can not exceed 26V.
           The power not to reverse the polarity. Package Included: 1 x Ampfier Board AMP Board with Radiator>
