Item specifics

Type: Voltage Regulator Condition: New Supply Voltage: 36V





Porduct description:
Dimensions: 53 * 63MM
Appcable: 36V 10 cells thium battery protection board
Batteries
Type: thium cobalt oxide / manganese thium / ternary materials
Single overcharge protection voltage 4.25V ± 0.05V (4.20-4.35V/0.05V per upgrade)
Single overcharge recovery voltage: 4.10-4.00V
Single over-discharge protection voltage: 2.50V ± 0.1V (2.50-3.0V/0.05V per upgrade)
Single over-discharge recovery voltage: 2.80V ± 0.1V
Protection Current consumption: ≤300UA
Short circuit protection current: 40A ± 3A
Short circuit protection time: 500MS
Temperature protection: 55/65/75 degrees
Discharge current: 30A
The maximum instantaneous current: 40A
Single balanced voltage: 4.19V ± 0.02V
Single balanced current: ≤ 55MA
Charge current: ≤10A

Package Included:
1x 10pin cable

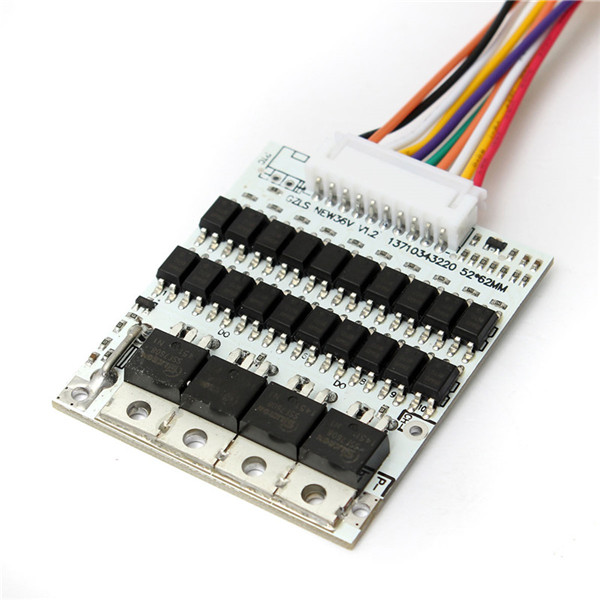

1x 10 cells 36V 40A Balanceing Lithium Protection PCB
