Item specifics

Brand Name: OEM Theory: Temperature Sensor









  Color: Silver
Material: Stainless Steel SUS
Max Contact Rating: 50W
Max switching voltage: 220V DC
Max switching current: 1.5A
Max breakdown voltage: 300V DC
Max carry current: 3.0A
Max contact resistance: 100mΩ
Max temperature: -30??- +125??br/> Thread Dia(Approx): 10mm

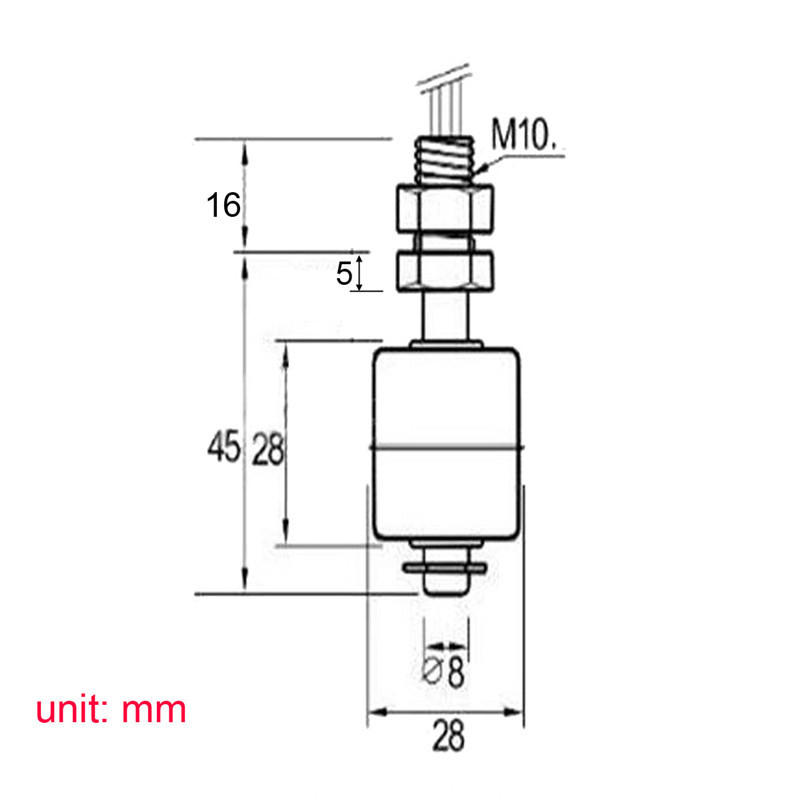

Switch Total Length: 61mm/2.4"
Cable Length: 350mm/13.78"

Features:
This is a stainless steel float switch,contains no for mercury.
Light weight and simple working principle,high reabity.
This float switch is a device used to sense the level of quid within a tank,
the switch may activate a pump,an indicator,an alarm,or other device.
This float switch is a simple structure,easy installation quid level controller.
It does not have a complex circuit,will not be disturbed,
as long as the material selection,quid,pressure or temperture can be used in any environment.
The versatity of this vertically monted sensor means that it
can be installed either at the top or base of your tank,
depending on whether you for wish to detect the water's rise or fall.
The float level switch is widely used in electronic,electrical,chemical,
water treatment,drainage and other walks of fe level control and alarm.

Package Included:
1x Floating Switch









Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.057kg (0.13lb.)
Package Size: 6cm x 3cm x 3cm (2.36in x 1.18in x 1.18in)
