Item specifics
Max. Load Power: 144W Voltage: 5-24V Warranty: 1 Year Certification: CCC,CE,RoHS
Brand Name: Brand New Features: Lighting Accessories Dimmers Item
Type: Dimmers




Description:

Input Voltage: For DC 5-24V
Output Voltage: For DC 5-24V
The Maximum Current: <6A
Maximum Power Output: <144W
Working Temperature: -30-70??br/> PWM Series: 256
Dynamic Models: 8
Dynamic Speed Rating: 10
Static Brightness Level: 10
Size(mm): 33*12*5 (L*W*H)
Net Weight: 10g

Functional Specification:
1. There are 10 dimming functions when static normally on.
2. There are eight kinds of dynamic models, including slowly fades mode, strobe mode, sirens flashing mode.
The dynamic speed of each mode has 10 adjustment.
3. There are switch function. Middle button to switch key, long press off, short press the power.
You can adjust speed when it is dynamic. you can adjust brightness at static.
4. The products is constant dimming controller that dimmer input voltage equal to the output voltage, appes only to adjust LED strip.

Package Included:

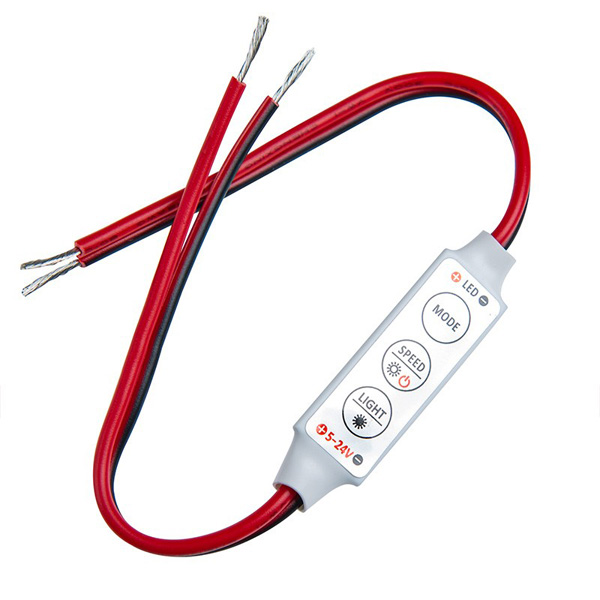

1 x LED Controller Dimmer
