3.5 inch tft lcd car rear view dvd monitor parking rearview monitor 2 video input + 7 ir led lights car reverse camera
- Model: car-monitors-1783
(6reviews)
( today,deliverd around 31/05/2022)
Item specifics
Item
Type: Car Monitors Placement: In-Dash Display Size: 3.5" Model Name: other Resolution: 320x240 Material
Type: other Item Weight: 387 g Place of Origin:: Guangdong China (Mainland) Warranty: 1 Year Color: : Black Video System: : NTSC / PAL auto switch Visible area: : 72 x 53mm

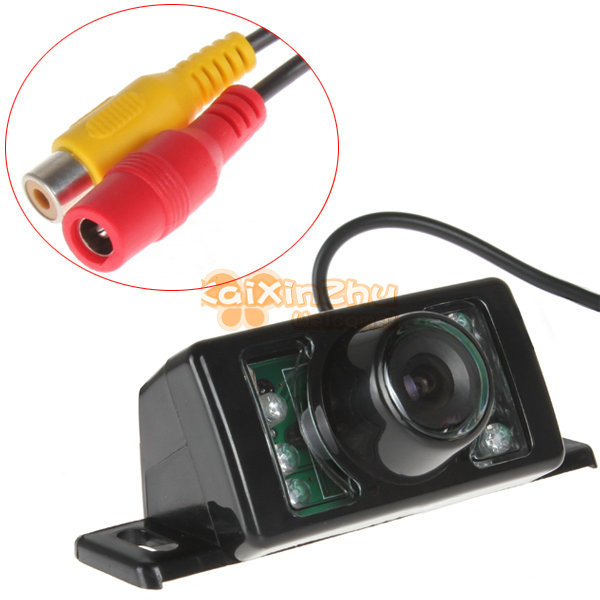

This 3.5 inch TFT LCD rear view monitor adopts 320 x 234 resolution. 2-channel video input makes it can turn up detecting automatically. Support multi-role display, include reversing camera or reversing sensor. It can connect with reversing camera, DVD, VCD etc. And the 7 IR ghts car rear view camera could display a reversed camera image on the monitor to dupcate the normal view seen in a rear view mirror. Main Features: - With small size design for your convenient carry, it can be installed in the drive foreground.
- With durabity using time, low consumption.
- High resolution for clear display with 3.5 inch TFT LCD screen.
- With adhesive sticker in stand holder button for your use in the car
- Video: 2-channel video input, which can turn up detecting automatically
- Support multi-role display,include reversing camera or reversing sensor
- Can connect with reversing camera, DVD, VCD etc
- Can connect with car backing system
- Display black screen on no signal
- Size: 3.5 inch TFT LCD
- Resolution: 320 x 234
- Display Format: 4:3> Video System: NTSC / PAL auto switch> Visible area: 72 x 53mm> Temperature:
- Work: 0 to 80 degrees Celsius
- Storage: -10 to 80 degrees Celsius> Power supply: DC 12V - 24V> Power consumption: 2W> Color: Black > Product Weight: 207g> 7 IR Lights Car Rear View Camera:> Main Features:
- High-definition & High-sensitivity - 420TV nes.
- Waterproof, Weatherproof, Shockproof function.
- Support night vision.
- 120 degree wide viewing angles.> Image Sensor: Color CMOS / CDC> TV System: NTSC / PAL> Effective Pixels:
- NTSC: 728 x 628 828 x 686
- PAL: 628 x 586> Scanning System: 2 : 1 Interface> Sync System: Internal> Resolution: 420 TV nes> Lens Angle: 2.8mm / 120 ~ 1.8mm / 120 Degree> Sensor Area: 5.961 x 4.276mm> Video Output: 1.0Vp-p, 75ohm> S / N Ratio: More than 48db> Waterproof: IP68> White Balance: Auto> Power: 60mA> Consumption: Max 300mA with IR on> Power Supply: DC 12V> Operating Temperature: - 20 ~ + 80 Centigrade> Storage Temperature: - 40 ~ + 80 Centigrade> Camera Net Weight: 54g>
Package Weight: 180g> Approved: CE / FCC> After Sales Service: 1 Year Warranty> CMO_343>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.500kg (1.10lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
Item
Type: Car Monitors Placement: In-Dash Display Size: 3.5" Model Name: other Resolution: 320x240 Material
Type: other Item Weight: 387 g Place of Origin:: Guangdong China (Mainland) Warranty: 1 Year Color: : Black Video System: : NTSC / PAL auto switch Visible area: : 72 x 53mm
This 3.5 inch TFT LCD rear view monitor adopts 320 x 234 resolution. 2-channel video input makes it can turn up detecting automatically. Support multi-role display, include reversing camera or reversing sensor. It can connect with reversing camera, DVD, VCD etc. And the 7 IR ghts car rear view camera could display a reversed camera image on the monitor to dupcate the normal view seen in a rear view mirror. Main Features: - With small size design for your convenient carry, it can be installed in the drive foreground.
- With durabity using time, low consumption.
- High resolution for clear display with 3.5 inch TFT LCD screen.
- With adhesive sticker in stand holder button for your use in the car
- Video: 2-channel video input, which can turn up detecting automatically
- Support multi-role display,include reversing camera or reversing sensor
- Can connect with reversing camera, DVD, VCD etc
- Can connect with car backing system
- Display black screen on no signal
Specifications:>
3.5 Inch TFT LCD Car Rear View DVD Monitor> Screen:- Size: 3.5 inch TFT LCD
- Resolution: 320 x 234
- Display Format: 4:3> Video System: NTSC / PAL auto switch> Visible area: 72 x 53mm> Temperature:
- Work: 0 to 80 degrees Celsius
- Storage: -10 to 80 degrees Celsius> Power supply: DC 12V - 24V> Power consumption: 2W> Color: Black > Product Weight: 207g> 7 IR Lights Car Rear View Camera:> Main Features:
- High-definition & High-sensitivity - 420TV nes.
- Waterproof, Weatherproof, Shockproof function.
- Support night vision.
- 120 degree wide viewing angles.> Image Sensor: Color CMOS / CDC> TV System: NTSC / PAL> Effective Pixels:
- NTSC: 728 x 628 828 x 686
- PAL: 628 x 586> Scanning System: 2 : 1 Interface> Sync System: Internal> Resolution: 420 TV nes> Lens Angle: 2.8mm / 120 ~ 1.8mm / 120 Degree> Sensor Area: 5.961 x 4.276mm> Video Output: 1.0Vp-p, 75ohm> S / N Ratio: More than 48db> Waterproof: IP68> White Balance: Auto> Power: 60mA> Consumption: Max 300mA with IR on> Power Supply: DC 12V> Operating Temperature: - 20 ~ + 80 Centigrade> Storage Temperature: - 40 ~ + 80 Centigrade> Camera Net Weight: 54g>
Package Weight: 180g> Approved: CE / FCC> After Sales Service: 1 Year Warranty> CMO_343>
Accessories:>
1 x User Manual> 1 x Video & Power Cable>Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.500kg (1.10lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
