Item specifics
With Modem Function: No Products Status: Stock WAN Ports: 1 LAN Ports: 2 Max. LAN Data Rate: 300Mbs
Type: Wireless Application: Soho Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n
Model Number: - After Sales Service: 1 Year Place of Origin: Guangdong, China (Mainland)

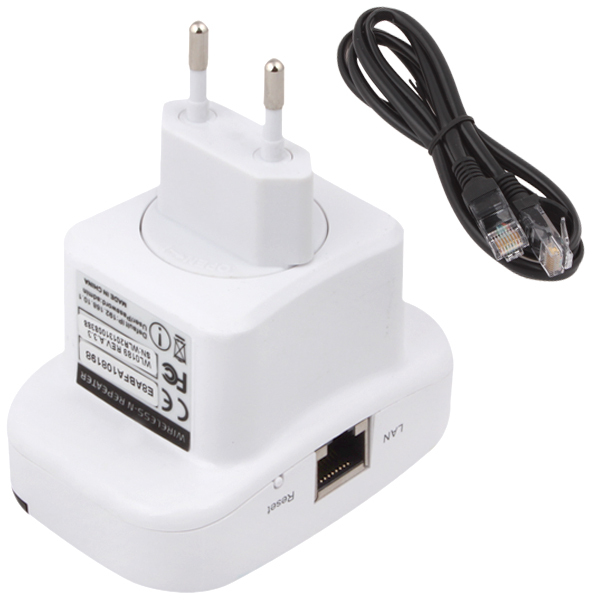

This WIFI repeater is a combined wireless network connection device designed specifically for small business, office, and home office networking requirements. It allows a wireless network to be expanded using multiple access points without the need for a wired backbone to nk them. It also works well with other 11b / g and 11n protocol wireless products.   Features: - Improves wireless coverage in all WLAN networks
- WLAN 802.11n for wireless high-speed access
- Downward compatible with 802.11g (54Mbit/s) and 802.11b standard (11Mbit/s)
- Support 2.4GHz WLAN networks.
- Maximum WLAN security with WPA2, WPA and WEP(128/64).
- Software wizard for simple setup.
- Antennas integrated.
- Provides up to 300Mbps transmission rates
- Supports Wireless Repeater and AP Mode
- The connection to a media receiver you can use to receive television over the internet
- Supports configuration file backup and restore   the router plug has EU AU US UK standard. we will send the suitable plug according to different countries. thanks for your ordering!

Specifications:>

Features:
- Improves wireless coverage in all WLAN networks
- WLAN 802.11n for wireless high-speed access
- Downward compatible with 802.11g (54Mbit/s) and 802.11b standard (11Mbit/s)
- Support 2.4GHz WLAN networks.
- Maximum WLAN security with WPA2, WPA and WEP(128/64).
- Software wizard for simple setup.
- Antennas integrated.
- Provides up to 300Mbps transmission rates
- Supports Wireless Repeater and AP Mode
- The connection to a media receiver you can use to receive television over the internet
- Supports configuration file backup and restore> System requirements:
- WLAN access point/cent according to IEEE 802.11n/g/b.
- 110 ~ 230-volt socket
- The WLAN cent must support at least the WPA encryption standard.
- WLAN access point and the WLAN cent with automatic IP address assignment(DHCP).
- Forwarding of IPv4-based protocols/Address Resolution Protocol.
- The network name (SSID) of the WLAN access point must be set to "visible".> Wireless
- Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4GHz ~ 300Mbps
- Power: 802.11b: 17dBm ?1.5 dBm; 802.11g: 14dBm ?1.5 dBm; 802.11n: 14dBm ?1.5 dBm
- Sensitivity: 802.11b: -83dBm /802.11g: -70dBm / 802.11n: -68dBm
- Distance: Outdoors 300m, indoor 100m(According to the actual environment change)
- security: 64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS> Software:
- Mode: AP Mode / Repeater Mode
- Wireless Security: WPA-PSK/WPA2-PSK, WPA/WPA2, 64/128/152-bit WEP
- System tools: traffic statistics & system journal> Hardware:
- Ports: 1 x RJ45 Jack
- Button: Reset WPS
- Chipset: RTL8196E
- Flash: 16Mbps
- SDRAM: 128Mbps
- Power supply: Internal DC5V / 1A
- Power consumption: 2.3W
- Rated voltage / frequency / current: 100-240 VAC 50/60Hz, 0.1A Max.> Environmental:
- Operating temperature: 0 ~ +40 degrees
- Storage temperature: -10 ~ +70 degrees
- Relative humidity: 10% ~ 90% ( Non Condensation )> Color: White & Black> Product Weight: 92g>
Package Weight: 197g> Package Dimensions(L x W x H): 115 x 65 x 180mm> Approved: CE / FCC> After Sales Service: 1 Year Warranty> EPC_CAS_514>

Accessories:>

1 x Networking Cable> 1 x User Manual>
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.360kg (0.79lb.)
Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
