Item specifics

Brand Name: OEM DIY Supplies: Electrical
Model Number: SKU190404 Usage: LCD Power supply tester


Features:

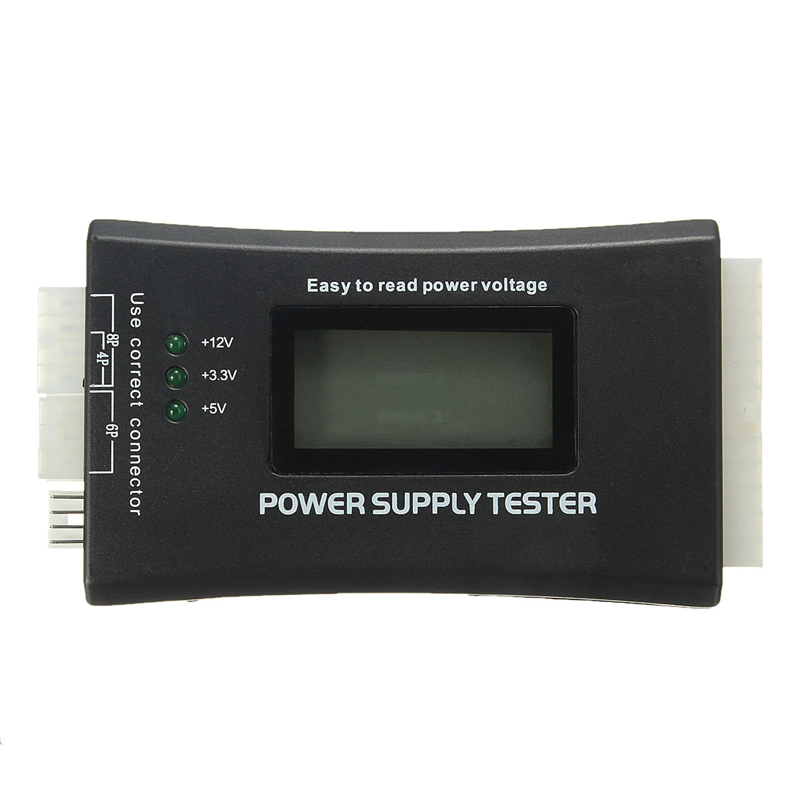

The power supply tester is a robust voltage, tester for PC-power supply. ATX, BTX and ITX compant, power suppes can be tested. LCD's indicate the status of voltage. The PC/ SPS is suitable for the ambitious hobby user, as well as for a quick functional check in for speciazed trade
The Methods of Operation:
Plug power supply 24PIN and P4, P6 or P8 into the corresponding jack of the power test suite
Power on the supply of power, will hear "DuDu" ring, if no fcker then the power supply output voltage is normal
If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer; if the corresponding voltage value or PG fcker too, then the power is failed

Specification:
Size: Approx. 12.1x6.5x1.8cm/ 4.76x2.56x0.71"
Voltage Source: 20/ 24pin (ATX-connector)
Voltage Test: +12V, -12V, +5V, -5V, +3.3V, +5V Stand by(SB) 12Vpower Good(PG)
Connectors: Floppy, HDD, CDROM, SATA, 4pin(P4), 8pin(Dual-CPU), 6pin(PCI-Express)

Package Included:
1x Power Supply Tester
