Item specifics

is_customized: Yes Operating Temperature: no
Brand Name: Brand new Dissipation Power: 0-52.5w Supply Voltage: 3-15V
Model Number: SKU257967 Condition: New
Type: Voltage and Current Detector Application: other










Description
Input voltage range: 3 ~ 15V
Input current range: 0 ~ 3.5A
Voltage measurement error: 3 ~ 15V when ± 1%
Current measurement error: 50 ~ 3500mA time, ± 1%
Maximum capacity value: 99999mAh


This product than the previous generation, with more significant progress, Adds the following features:

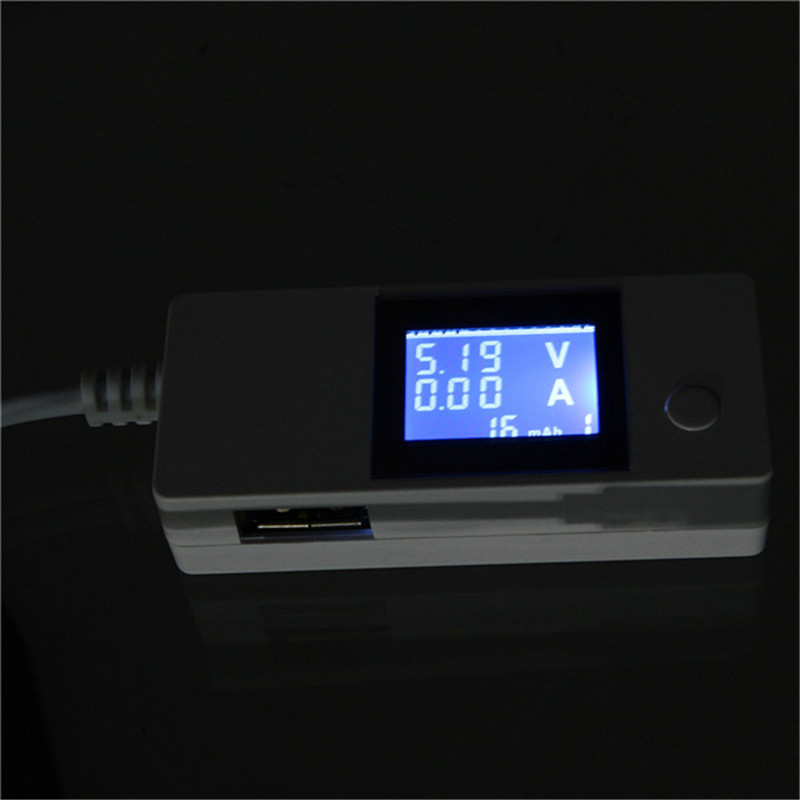

1, LCD big screen: Size 20 * 14mm, with blue backght

2, 20AWG USB Cable input, low current and voltage loss
(actual test, Micro USB input voltage loss is higher than USB Cable input voltage loss 0.1V)

3, over-current, over-voltage, low voltage alarm with buzzer alarm

4, overcurrent, overvoltage, power for protection

5, For Samsung mobile phone, tablet, for IPAD large current adaptive function(independent CW3002D chip)
can be compatible with most of the mobile tablet currently achieve maximum charging current
(in the context of sufficient power charger)

6, dual USB output function
(one USB data Sync & charging function, one is a universal USB adapter quick charge function)
Because, Power Bank and mobile phones, in use, the voltage and current is not a stable value.
If you need more accurate results, you need a load resistor with a switch.
Button Function:
1.Cck the button can view the data group one by one (total 9 groups),
cck one time, the screen will display next group of data.
(When this product is doing test,you could view other group' s data,or example,
Data Group No.5 is showing the current testing data, cck the button one time ,
screen will show Group No.6' s data with flashing,
cck one more time will show the Group No.7' s data with flashing also.
After 5 second without any operation,
the screen will come back to show the (current) Group No.5' s data ) Double cck the button,
current data will be saved and then change to next group of data;

2.Holding button(about 2-3 seconds),current data will be deleted;

3. When input Voltage is over 5.7v or lower than 4.6v,
the Screen's Voltage data will flash(1 Hz frequency),
Buzzer will alarm(sound "D-D-D",repeated every 5 seconds);
When Voltage is over 6V,USB port will be shut down automatically in order to protect the device,
and Buzzer will alarm(Sound:"D-D-D",repeated every 5 seconds)

4.When Output Current is over 3.1A ,the Screent's Electric Current data will flash(1 Hz frequency),
Buzzer will alarm(sound"D-D-D",repeated every 5 seconds);
When Output Electric Current is over 3.5A,
USB port will be shut down automatically in order to protect the device,
andBuzzer will alarm (Sound :"D-D-D",repeated every 5 secondss)


PS:
After the USB port shut down (Voltage over 6V or Output Electric Current over 3.5A)
this item have to be shut down( it means just take out from power) then use again.


Package include
1x Voltage and Current Detector
1x Usage Guide









Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.060kg (0.13lb.)
Package Size: 15cm x 7cm x 2cm (5.91in x 2.76in x 0.79in)
