Item specifics
Display
Type: Digital Only Operating Temperature: -10 to 65C Accuracy Class: 1% (+_1 digit) Measuring Range: DC 0 ~ 100V DIY Supplies: Electrical Dimensions: 48 x 29 x 21mm
Model Number: YB27VA Place of Origin: Guangdong, China (Mainland) Warranty: 1 Year Display: 0.28" LED digital Display color: Red (dual display) Product Color: Black
is_customized: Yes






YB27VA DC 0-100V/10A Red LED Dual Display Ammeter Voltmeter Volt Amp Meter for Cars / Motorcycles

YB27VA is a Volt Amp Meter dual display ammeter and voltmeter by its 0.28 inch LED panel.its widely appcate forautomotive / electric cars / motorcycles battery monitoring or other products voltage current measurement.

Specifications:

Model: YB27VA Appcations:Suitable for automotive / electric cars / motorcycles battery monitoring or other products voltage current measurement Operating voltage:DC 4.5 ~ 30V Measure voltage: DC 0 ~ 100V Minimum resolution(V): 0.1V Measure current :DC 10A (direct measurement,built-in shunt) Minimum resolution(A): 0.01A Operating Current: <20mA Display: 0.28" LED digital Display color: Red (dual display) Refresh rate: about 500mS / times Measure accuracy: 1% (+_1 digit) Operating temperature: -10 to 65?c Operating Humidity: 10 to 80% (non-condensing) Working pressure: 80 to 106 kPa Wiring:

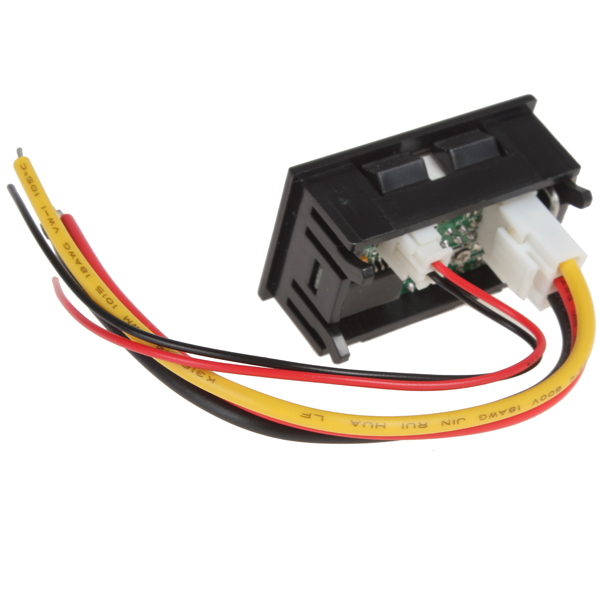

- Black ne (thin): vacant or buck circuit (module) negative
- Red ne (thin): power supply+
- Black ne (thick): COM, common measuring
- Red ne (thick): PW+, measuring terminal voltage input positive
- Yellow ne (thick): IN+, current input+ Product Color: Black Product Dimension: 48 x 29 x 21mm Mounting cutout: 45.5 x 26.5mm Net Weight: 22g Package Dimension:50 x 58 x 68mm
Package Weight: 32g Notice:
- The voltage between the thin red and thin black nes must be within DC 4.5-30V.
- The ammeter can only be connected to the negative of the device under test.
- 10A below ammeter (include 10A), built-in shunt, does not require external shunt.
- When the black thin ne vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits.
- If just be used as a voltmeter, it is recommended that the yellow ne and the black ne were connected together, to prevent the ammeter digital flashing. Approved: CE / FCC After Sales Service: 1 Year Warranty EPC_CEC_648
Product Description
Packaging Details Unit
Type: piece
Package Weight: 0.050kg (0.11lb.)
Package Size: 11cm x 11cm x 11cm (4.33in x 4.33in x 4.33in)
